PLA Perfectly Builds the Sound System for the Multifunctional Banquet Hall of Yangcheng Evening News Group

Yangcheng Evening News Group was established on May 18, 1998, and is one of the earliest large-scale newspaper groups in China, organized by the Guangdong Provincial Party Committee.

The equipment selected by the PLA PL team is as follows:

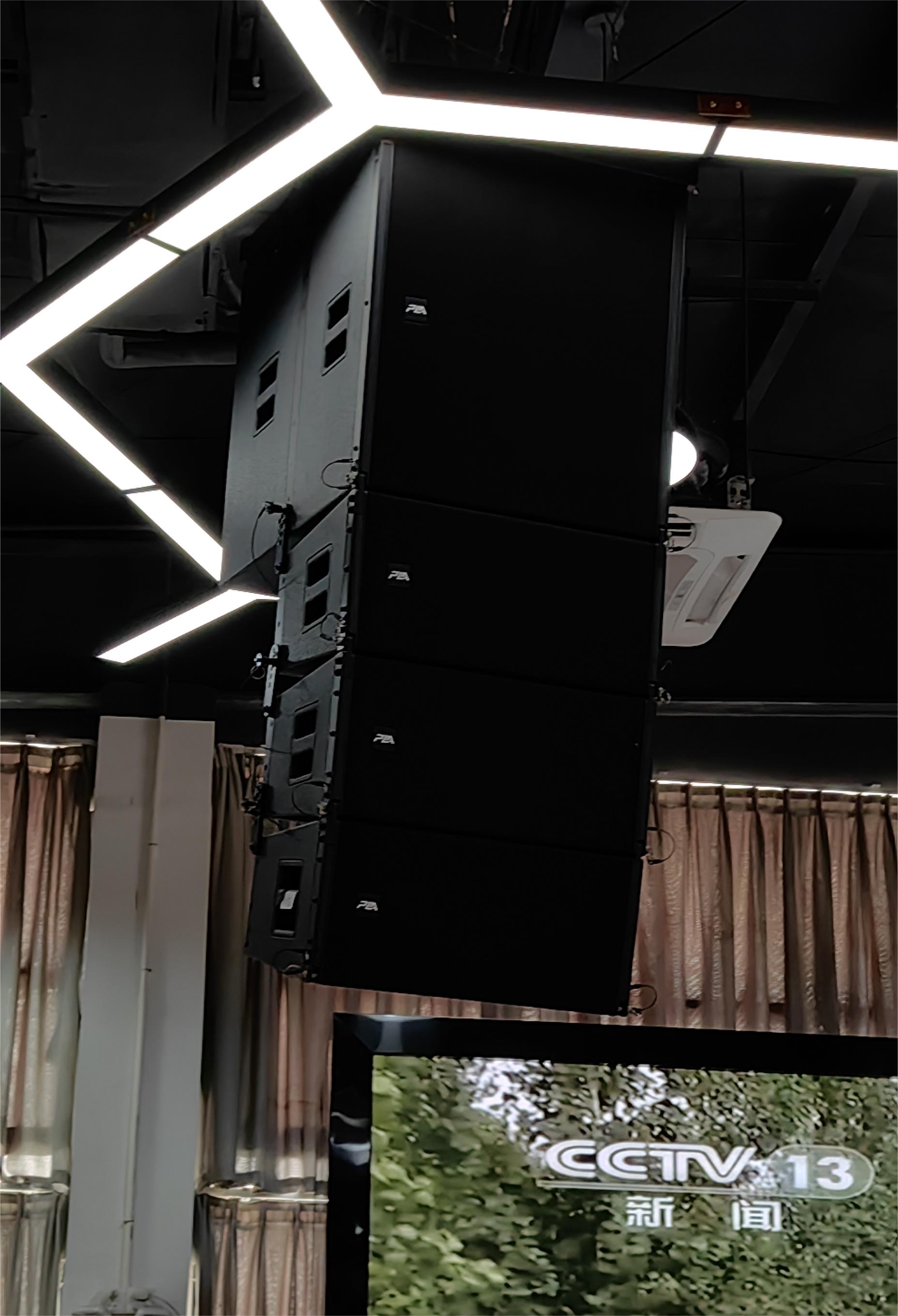

PLA LS110 main amplifying linear array full frequency speaker: equipped with WCT (Wavefront Coupling Technology) wavefront coupling technology; All neodymium magnetic high sensitivity unit with great dynamic margin; Small size, light weight, and extremely high sound pressure/volume ratio.

PLA LS110S main amplifying linear array ultra-low frequency speaker: 75mm voice coil high transient bass unit; Small volume inverted phase and front horn combined box design; Small size, high sound pressure output.

PLA PS8 full frequency speaker: equipped with FCT (Full frequency Coherent Technology) full frequency coherent technology; 36mm compressed high pitch; Low frequency response as low as 50Hz; Excellent vocal performance.

PLA PS10 full frequency speaker: equipped with PCT (Phase Coherent Technology) phase coherence technology; Elastic low-frequency; Ultra long stroke rubber edge bass unit; Rotatable 80 × A 50 degree constant pointing horn.

PLA P108 timing controller: 2 hour color LCD intelligent display window, which can display the current voltage, date and time channel switch status in real-time; 8 switch channel outputs, with each delay opening and closing time freely adjustable (range 0-999 seconds, unit: seconds); Support panel lock function to prevent misoperation; Equipped with a built-in clock chip, it can automatically switch on and off according to the date and time, without the need for manual operation; Support cascading sequential control of multiple devices and automatic detection settings for cascading; Configure 232 interface to support external central control device control; Each device comes with its own ID setting and detection testing, which can achieve remote centralized control; 10 sets of device switch scene data saving/calling, simple and convenient scene management application; Undervoltage and overpressure detection and alarm.

PLA F600 and F1200 power amplifiers: frequency response: 20 Hz to 16 kHz ± 1 dB; Total harmonic distortion (1kHz, full power 4 Ω): 0.1%; Signal to noise ratio: 95 dB; Input method: 3-pinXLR, balanced; Input impedance: 20 k Ω balanced/10 k Ω unbalanced; Output connections: speakON Connectors (Neutrik); Current requirement: 200-240V~50-60 Hz.

PLA Pulai Sound provides the highest quality sound reinforcement system equipment installation services for the multifunctional banquet hall of Yangcheng Evening News Group with advanced technology, excellent and reliable quality, reasonable design, and meticulous construction.
