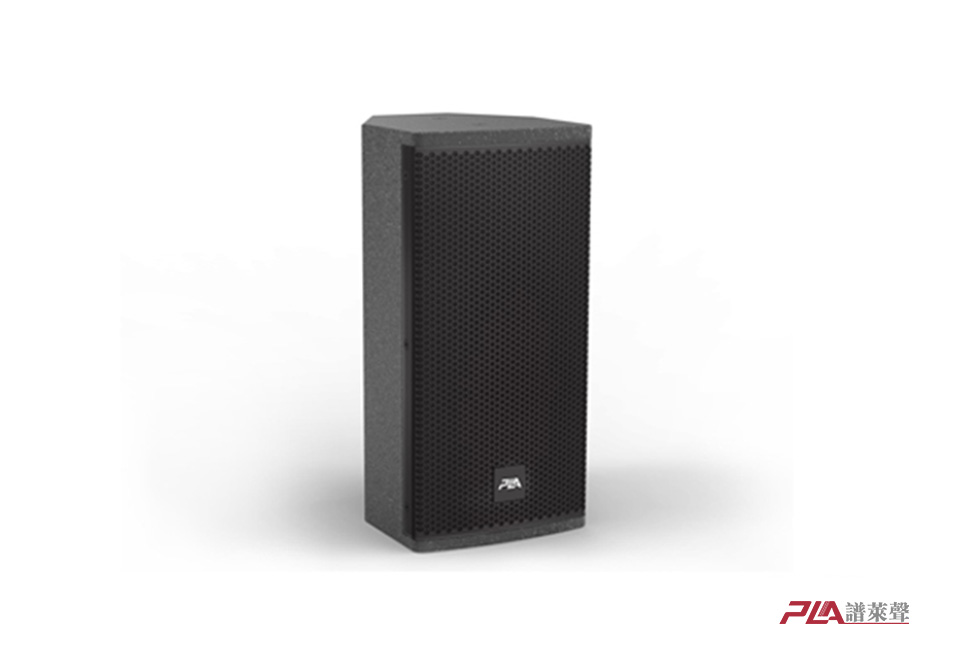

PS8
Application | Feature | |||
Conference room | Full frequency Coherent Technology | |||
| Churc | 36mm HF compression driver | |||
| Fill system | Low frequency response extend to 50Hz | |||
| Excellent vocal performance | ||||
Technical specification | |

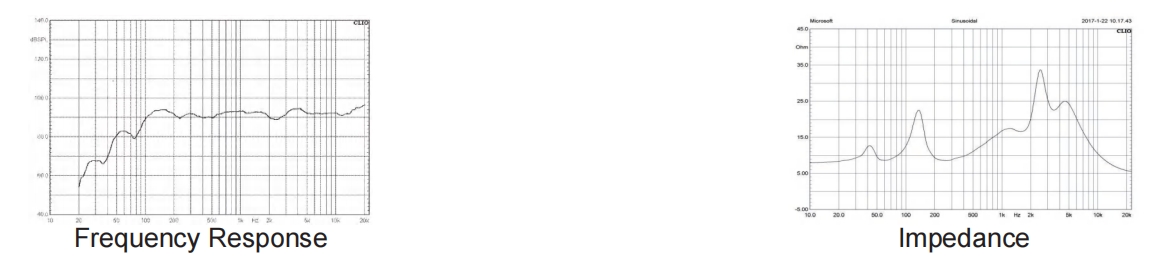

Frequency Respond | 90 Hz ~ 18 kHz(±3 dB) ; 50 Hz ~ 20 kHz(-10 dB) |
Nominal Coverage(- 6 dB) | 80°(H)80°(V) Constant directivity |
Sensitivity(@1w/1m) | 93 dB SPL (90 Hz~20 kHz) |
Powerating(AES) | 250 W |
Nominal Impedance | 8 ohm |
Maximum SPL | 117 dB (Continuous) 123 dB (Peak) |
Drivers | LF:1 x 8" driver HF:1 x 36 mm diaphragm compression driver |
Power lnput | ||||
| Connectors | 2 x NL4MP Neutrik connectors | |||
| Speaker Cables | 1+1- | |||
Physical data | |

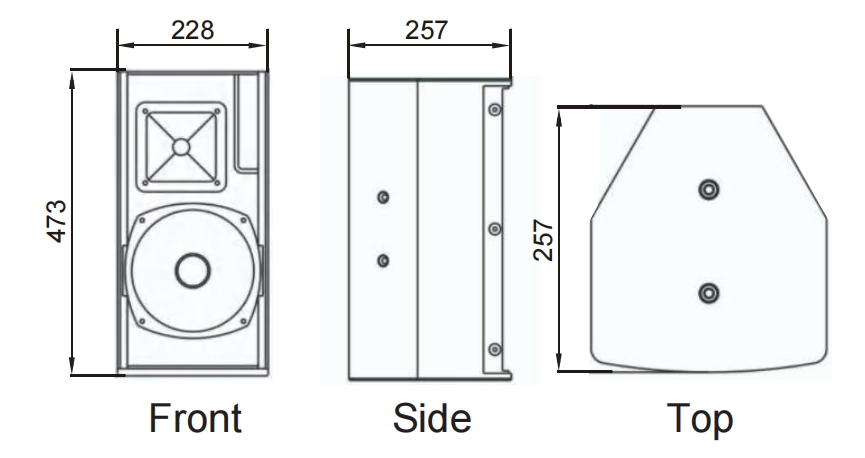

Dimension( H x W x D) | 437x228x257 mm |
Weight | 9.8Kg |
| Materials | 15 mm, 18 mm multi-plywood |
Finish | Black epoxy mesh grille with acoustically reticulated foam |
| Installation | standoff holes and for multiple flying points |
-
