Applications | Feature | |
Bar | Phase Coherent Technology | |
Theatre | Frequency response special design to avoid auditory fatigue | |
Stage Monitor | Rotatable and asymmetrical horn | |
13x M8 rigging points | ||
Pole mount socket |
Technical parameters | ||

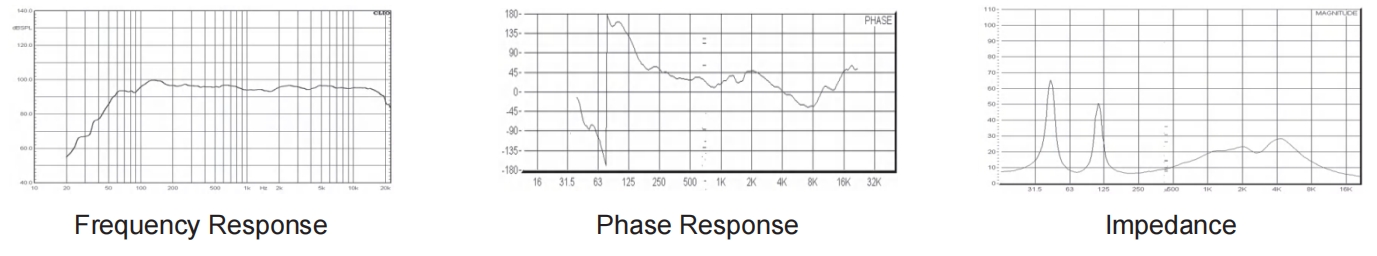

Frequency response | 70 Hz-18 kHz(+3dB) 55 Hz-20 kHz(-10dB ) | |
Nominal Coverage(-6dB) | 50°~ 100°(H)55°(V) Constant directivity | |
Sensitivity (@1w/1m) | 95dB SPL | |
Power Rating (AES) | 350W | |
Nominal Impedance | 8Ohm | |
Max SPL | 126 dB(peak) | |
Drivers | LF1 x 10"(7 5mm voice coil) woofer HF 1 X 44mm voice coil compression driver |
Power lnput | ||
Connectors | 2 X NL 4MP Neutrik Speakon connectors | |
Speaker Cables | 1+1- |
Appearance | ||

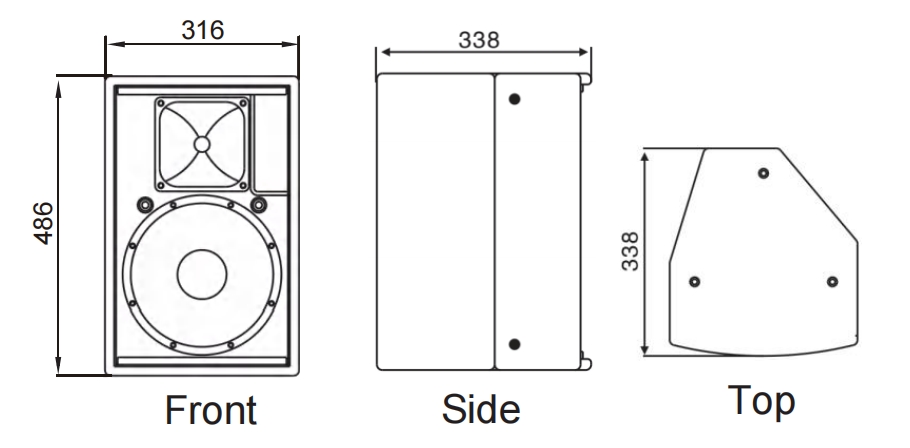

Dimensions | 486 x 316 x 338 mm | |
Weight | 19Kg | |
Materials | 18mm, 24mm birch plywood | |
Finsh | Black polyurea paintings | |
Grille | Black epoxy mesh grille with acoustically reticulated foam |
