Applications | Feature |
Bar KTV Near-Field Sound | Phase coherent technology Elastic bass Long throw rubber edge LF driver Rotatable 80X50°directivity horn |
Technical parameters | ||
Frequency response | 50Hz~ 18 kHz(土3 dB); 30 Hz ~ 20 kHz(- 10 dB) | |
Nominal Coverage(-6dB) | 100°(H) 80°(V) Constant directivity | |
Sensitivity (@1w/1m) | 99 dB SPL | |
Power Rating (AES) | 500W (continuous) 1000W ( Recommended amplifier power ) | |
Nominal Impedance | 8Ohm | |
Max SPL | 123dB (continuous) 129dB (peak) | |
Drivers | L F: 1x15"(75mm voice coil) rubber edge woofer HF: 1x1.3" ( 44mm voice coil) compression driver |
Power lnput | |
Connectors | 2x NL .4 MP Neutrik Speakon |
Speaker Cables | 1+1- |
Appearance | ||

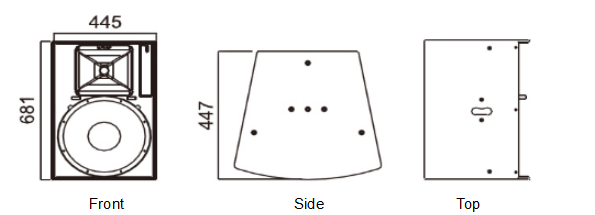

Dimensions | 681x 445 x 447 mm | |
Weight | 26Kg | |
Materials | 18mm multiply-plywood | |
Grid mesh Mesh | surface mesh covered with sound permeable mesh fabric Designed using DPR (Double Perforation Rate) dual perforation rate technology, the perforation rate in the mid to high range transmission area exceeds 90%, greatly improving sound transmission efficiency and reducing acoustic crosstalk of the mesh. |
