F10000

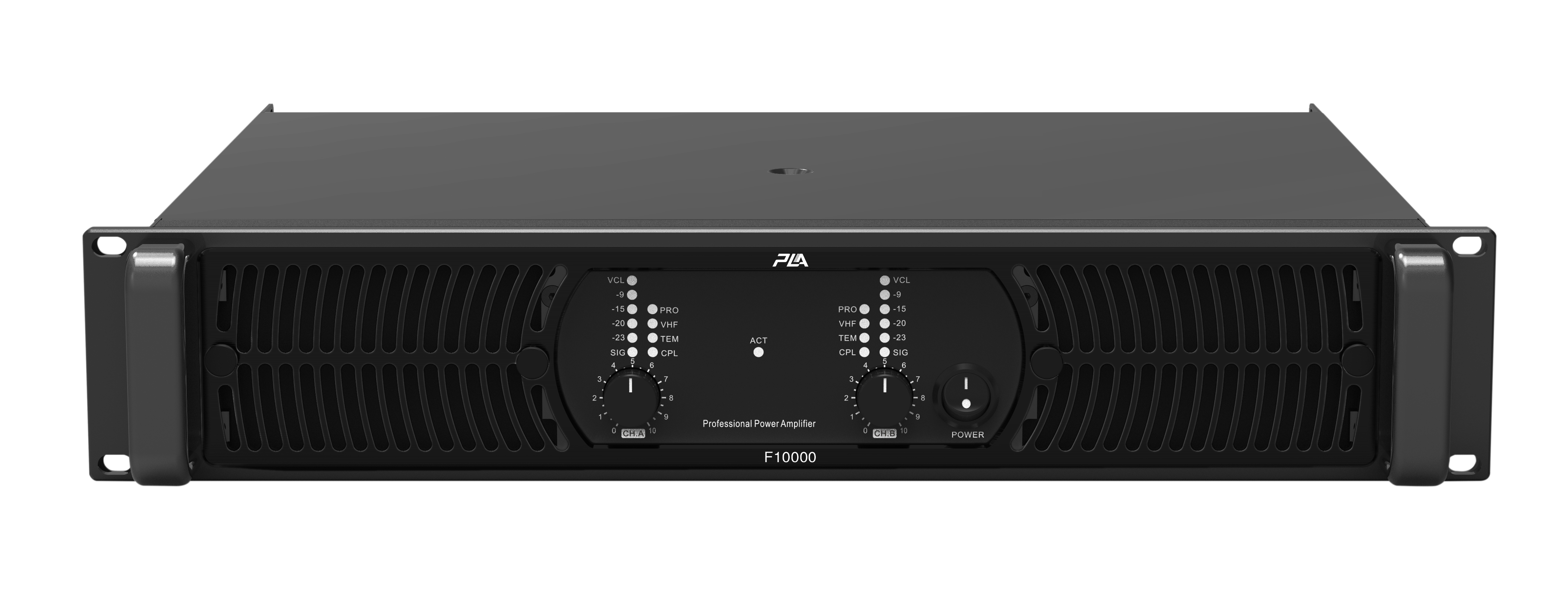

产品展示图 FM功放系列 F10000.jpg

★ High power density:

The F10000 delivers a total of 2x 4000W/4Ohm in only 2U.

★ Fineamp sound quality :

F10000 amplifiers maintain excellent sound quality, with transparent

mid- and high-frequency performance and new circuit designs

optimized for sustained low-frequency output.

★ Regulated Switch Mode Power Supply

Output power remains constant even with significant drops in the mains

voltage.

★ Efficient cooling system★ Adjustable parameters

★ XLR input and link connectors

★ Heavy- duty binding post or Speakon output connectors

★ Comprehensive protection and warning

★2ch Professional Amplifier	F10000
★Output power		★Connectors
8Ω Stereo power	2×2400W	Input connectors	3-pin XLR,electronically balanced
4Ω Stereo power	2×4000W	Input impedance	20kΩ Balanced/10Ω Unbalanced
8Ω Bridged Mono power	1×8000W	Output connectors	Speakon Connectors(Neutrik)
4Ω Bridged Mono power	1×12000W
★Technical Specification		★Power
Frequency response	20Hz-25kHz±0.5dB	Power requirement	200-240V～50-60Hz
THD+N(Rated power,4Ω/kHz)%	0.1%	Minimum voltage	180-260V～50-60Hz
Signal noise ratio(dB)	98dB	★Dimension and Weight
Optional magnification	23,26,29,32,35,38,41,44dB	Dimension	483×377×88mm
		Weight	13kg
