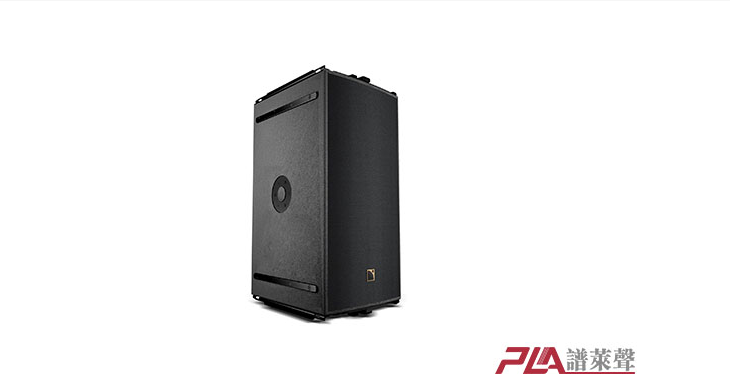

ARCS Focus


ARCS Focus


Type

Constant Curvature WST Enclosure

Powering and driving system

LA4X, LA8, LA12X

Bandwidth

55Hz - 20kHz ([ARCS_WIFO] preset)

Maximum SPL

139dB ([ARCS_WIFO] preset)

Nominal directivity

H x V: 90° x 15°

Transducers

LF: 1 × 12’’, bass reflex

HF: 1 × 3’’compression

Rigging

High strength steel with anti-corrosion coating

Rigging rails and WIFORIG coupling bars

Dimension(W×H×D)

365/252 x 759 x 444mm

14.4/9.9 x 29.9 x 17.5in

Net weight

38kg - 84lbs
