Type

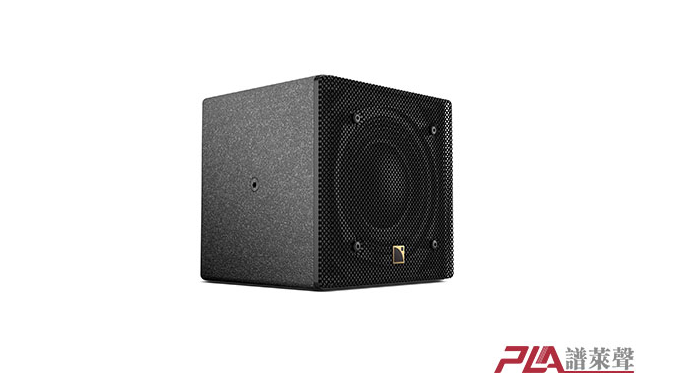

Passive 2-way coaxial enclosure

Powering and driving system

LA4X, LA8, LA12X

Bandwidth

95Hz - 20kHz ([5XT] preset)

Maximum SPL

121dB ([5XT] preset)

Nominal directivity

110°axisymmetric

Transducers

LF: 1 × 5’’, bass reflex

HF: 1 × 0.75’’ compression

Rigging

1 × 3/8” insert for microphone stand

2 × M6 inserts for ETR5 U-bracket

Dimension(W×H×D)

165 x 165 x 165mm

 6.5 x 6.5 x 6.5in

Net weight

3.5kg / 7.7lbs
