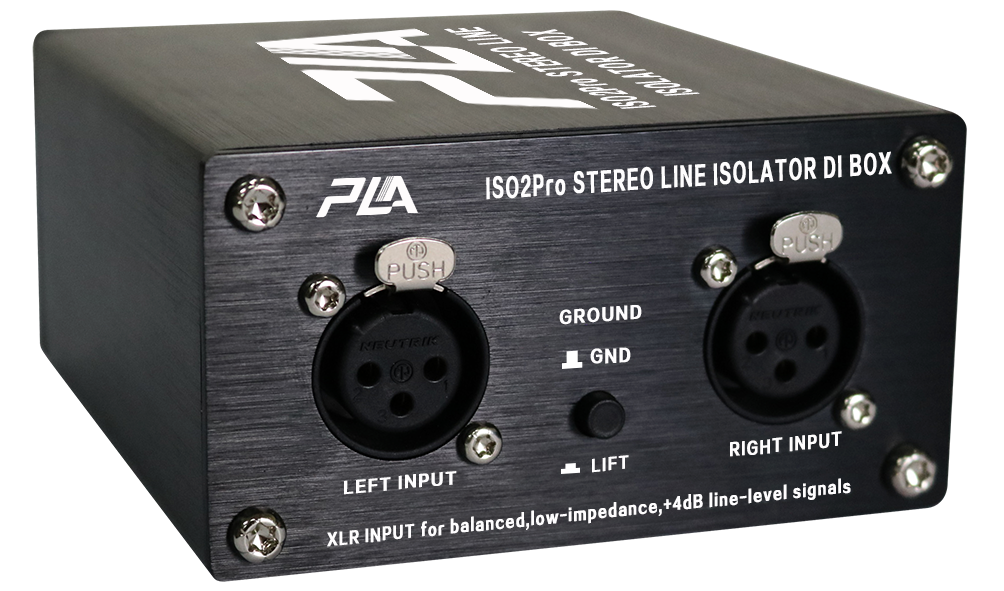

IS02 STEREO LINE ISOLATOR DI BOX

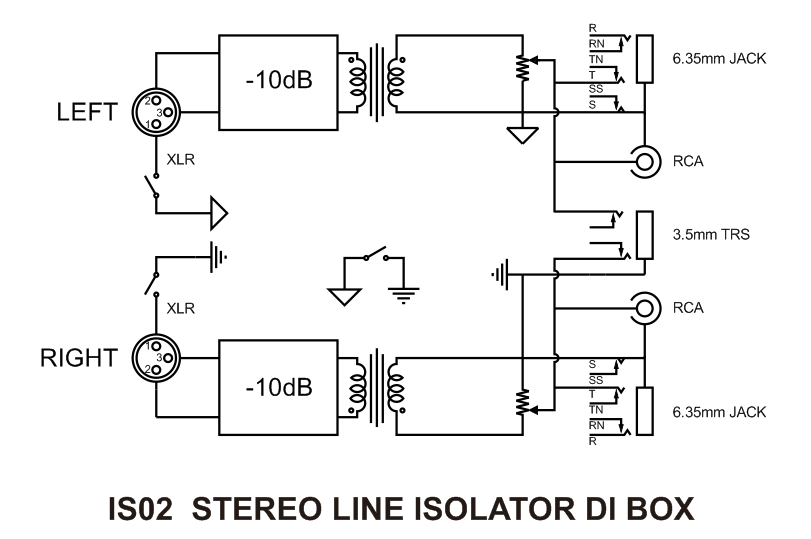

PLA ISO2 is a stereo line converter, With AIT (Audio Isolation Technology) Audio Isolation Technology can convert +4dB balanced line level signals to non-balanced -10dB levels, It can convert the balanced output of the mixer into non-balanced output, which can be used for recording for civil recording equipment and computer equipment.

ISO2 uses a high performance isolation transformer. Focus on sound range. ISO2 is an excellent choice where applicable.

Features:

※ With AIT (Audio Isolation Technology) Audio Isolation Technology

※ The integrated aluminum alloy body provides good shielding

※ Realize the balance and non-balance linear level signal conversion

※ Built-in islation transformer to eliminate noise Caused by ground circuit

※ Completely passive use, no external power supply or Battery required

Frequency response: 20Hz~20kHz(±0.2dB)

Dynamic range: 135dB

Maximum input: +20dBu@1kHz/1%THD+N

Total harmonic distortion: 001%@1kHz;0.005%@1kHz

Phase deviation: 1.5°@100Hz;3°@20Hz

Input impedance: 1.3k Ω, unbalanced 1.3k wide

Output impedance: 520 Ω, Ω balance 1.9 K

Size: 105mm(L)×98mm(W)×51mm(H)

Weight: 510g

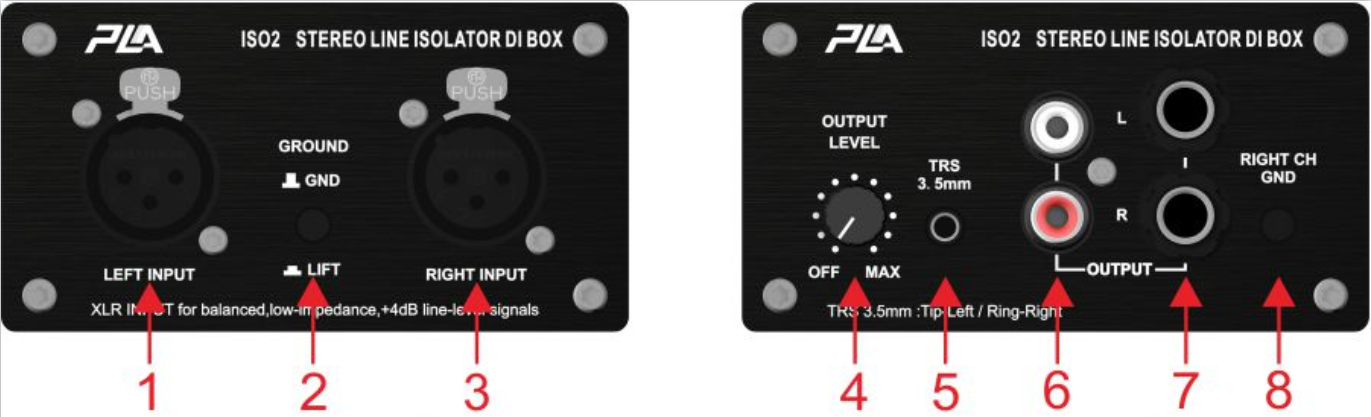

Description:

( 1 ) LEFT INPUT : Balanced XLR input +4dB.

( 2 ) GROUND LIFT : Connect/ Disconnect ground switch. When the button is pressed out, the input is grounded. When the button is pressed, Input disconnect ground.

( 3 ) RIGHT INPUT : Balanced XLR input +4dB.

( 4 ) OUTPUT LEVEL : Output gain adjustment.

( 5 ) 3.5mm TRS : 3.5mm TRS Output.

( 6 ) RCA OUTPUT : RCA coaxial output.

( 7 ) 6.35mm OUTPUT : 6.35 mm output.

( 8 ) RIGHT CH GND : CHR ground switch. When the button is pressed, Input L and Input R are connected together. When the button is pressed, the INPUT R ground will be separated from the INPUT L ground.
