Applications | Feature | |
Conference system | Wavefront Coupling Technology Flexible and easy to use with subwoofer PO-SUBK, it can be used independently or use both upper and lower | |
Medium size performance | Top to top mode, rotate 180 degrees through the top column, achieve horn to horn Turn level 100 degrees, long column of vertical 60 degrees and achieve long distance Amplification; |
Technical parameters | ||

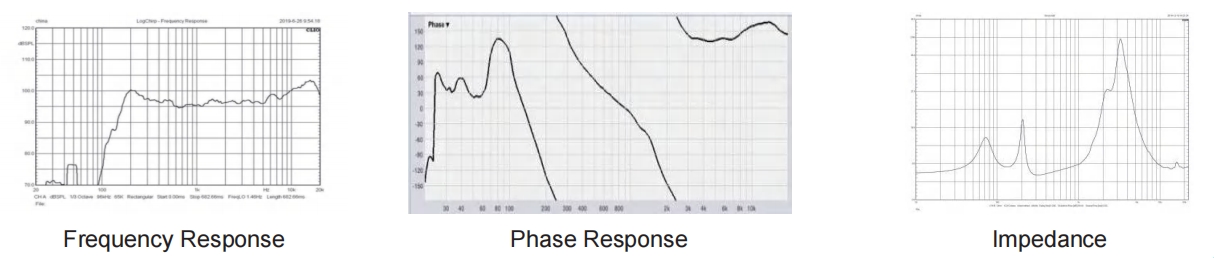

Frequency response | 200 Hz ~ 18 kHz (± 3dB ):150 Hz ~ 20 kHz (-10dB ) | |
Nominal Coverage(-6dB) | 100°(H)×45°(V)(Up 15°,down 30°) | |
Sensitivity (@1w/1m) | 97 dB SPL | |
Power Rating (AES) | 520W(AES) | |
Nominal Impedance | 8 ohm | |
Max SPL | 128 dB SPL peak | |
Drivers | LF 4x5" woofer (45mm voice coil) HF 1x1.75" neodymium compression driver |
Physical data | ||

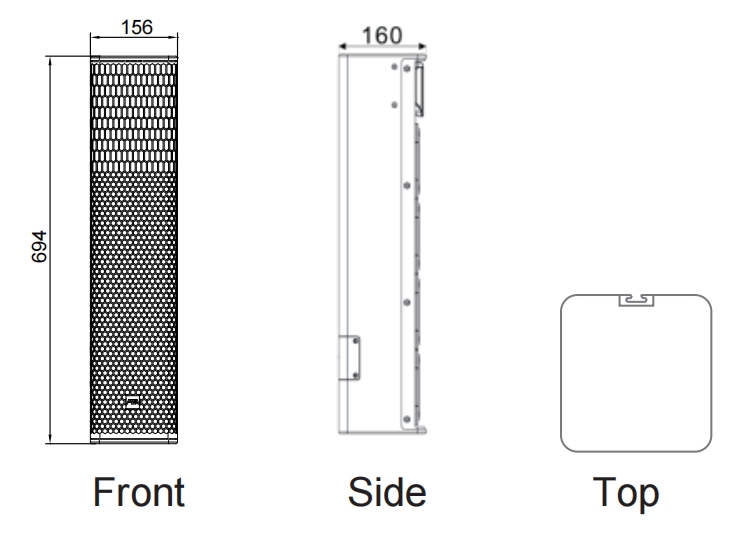

Dimensions | 694×156×160mm | |
Weight | 11kg | |
Connectors | NEUTRIKNL4 X 2 | |
Speaker Cables | 1+1- | |
Materials | 9mm, 12mm Baltic birch plywood | |
Finsh | Black Polyurea paintings | |
Grille | Black epoxy mesh grille with acoustically reticulated cloth | |
Rigging | 0、-5° degree adjustable ( with adjustable support ) |
