Applications | Feature | |
Conference system | Wavefront Coupling Technology | |
Medium size performance | Working with CL5, compact 18inch subwoofer speaker | |
Direct radiation type small subwoofer, the limit of LF can be as low as 35Hz (-10db |
Technical parameters | ||

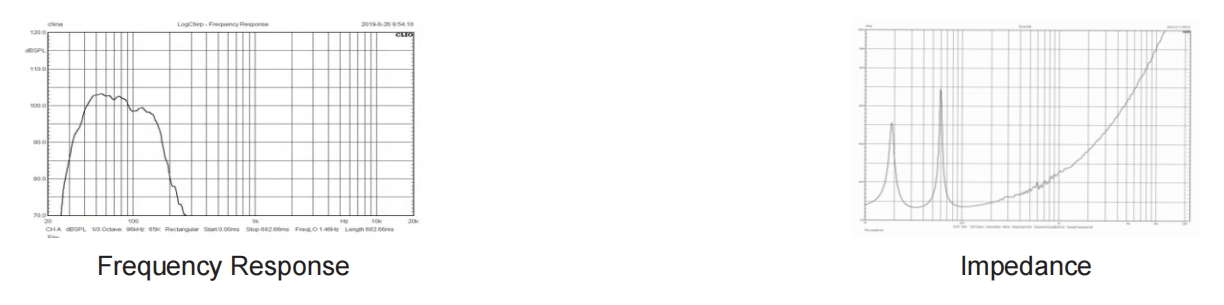

Frequency response | 40 Hz ~120 Hz (±3 dB );35 Hz ~180 Hz (-10 dB ) | |
Nominal Coverage(-6dB) | Omnidirectional | |
Sensitivity (@1w/1m) | 97dB | |
Power Rating (AES) | 1500W(AES) | |
Nominal Impedance | 8 ohm | |
Max SPL | 134 dB SPL peak | |
Drivers | LF 1x18" woofer (75mm voice coil) |
Physical data | ||

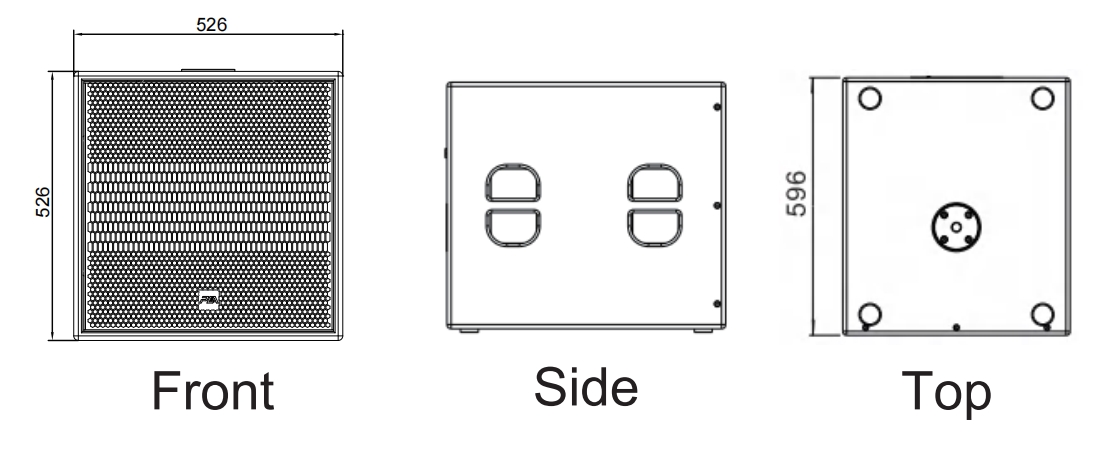

Dimensions | 534×526×596mm | |
Weight | 40kg | |
Connectors | USB+RJ45+XLR+powerCON+SpeakON | |
Materials | 15mm, 1 8mm Baltic birch plywood | |
Finsh | Black Polyurea paintings | |
Grille | Black epoxy mesh grille with acoustically reticulated cloth |
