Applications | Feature | |
Conference system | Wavefront Coupling Technology | |
Medium size performance | Working with CL5, compact 18inch subwoofer speaker | |
Direct radiation type small subwoofer, the limit of LF can be as low as 35Hz (-10db) |
Technical parameters | ||

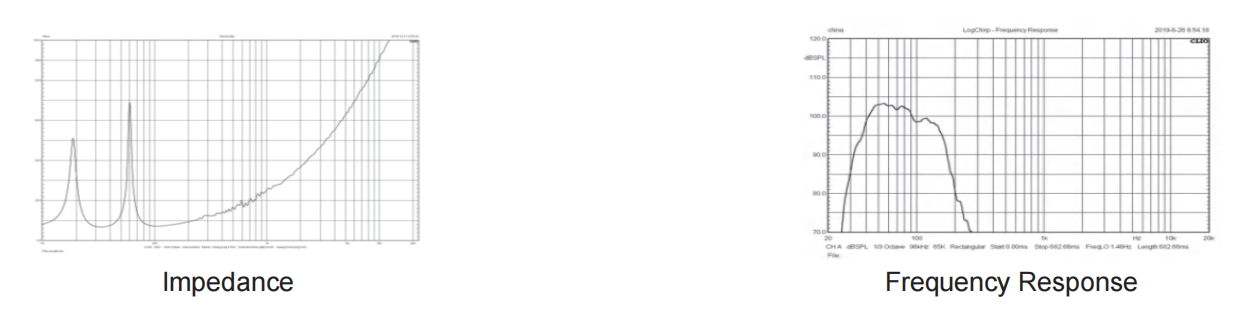

Frequency response | 40Hz~120Hz(±3dB);35Hz~180Hz(-10dB) | |
Nominal Coverage(-6dB) | Omnidirectional | |
Max SPL | 134 dB SPL peak | |
Drivers | LF 1x18" woofer (75mm voice coil) | |
Power Rating (AES) | 1500W | |
Power requirement | 200- -240V ~ 50-60Hz | |
Amplifier module | Dual channel 2000W | |
Power requirement | 0.82% | |
Snr Cooling system Output electric circuit | 104dB Airflow from back to front, Forced cooling Class D circult |
Physical data | ||

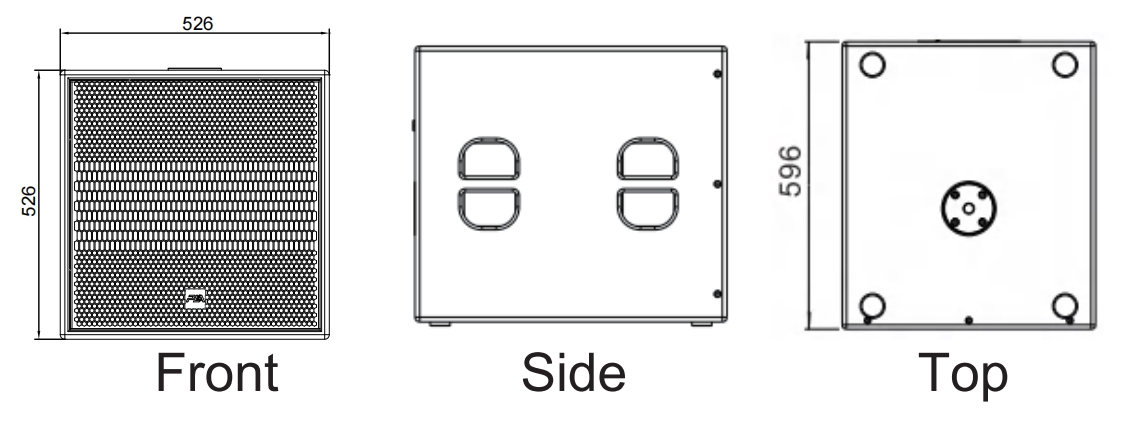

Dimensions | 534×526×596mm | |
Weight | 40kg | |
Connectors | USB+RJ45+XLR+powerCON+SpeakON | |
Materials | 15mm, 1 8mm Baltic birch plywood | |
Finsh | Black Polyurea paintings | |
Grille | Black epoxy mesh grille with acoustically reticulated cloth |
