Coaxial Point Source

44mm HF compression driver

Low frequency response extend to 50Hz

Excellent vocal performance

Technical parameters

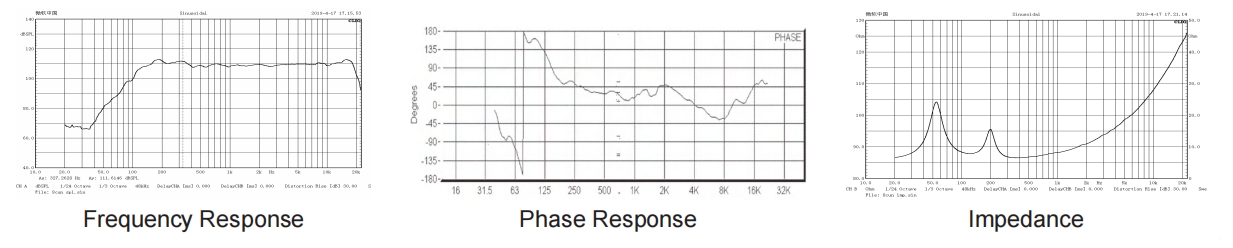

Frequency response

90 Hz ~ 18 kHz (± 3 dB ) ；50 Hz ~ 20 kHz (-10 dB )

Nominal Coverage(-6dB)

Sensitivity (@1w/1m)

Power Rating （AES）

Nominal Impedance

Max SPL

Drivers

80°（H）80°(V) Constant directivity

93 dB SPL（90Hz-20kHz）

250W (continuous)  500W (recommended )

8 ohm

117 dB/123 dB SPL peak

L F: 1x8"driver

HF: 1x1.75”(44mm voice coil) compression driver

Power Input

Connectors

Speaker cables

2×4 core Neutrik NL4 speaker base

1+1-

Appearance

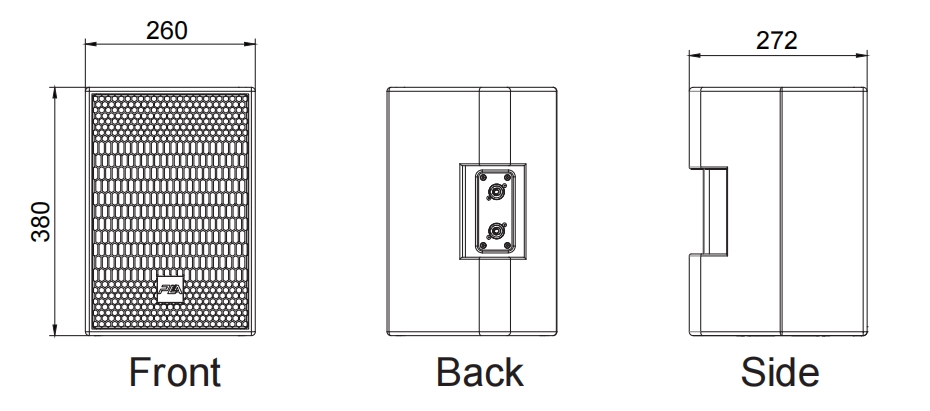

Dimension

Weight

Materials

Finsh

Grille

Installation

260 x 272.2 x 380 mm

7.4 kg

15mm，18mm  multi-plywood

Black polyurea paintings

DPR(Double perforationRate) technology is adopted in the design, in which the perforation rate in the middle and high-pitched transmission area exceeds 90%, which greatly improves the sound transmission efficiency and reduces the acoustic crosstalk of the screen.

standoff holes and for multiple flying points
