PRODUCTS

PC10

	Feature
	Phase Coherent Technology

Technical parameters

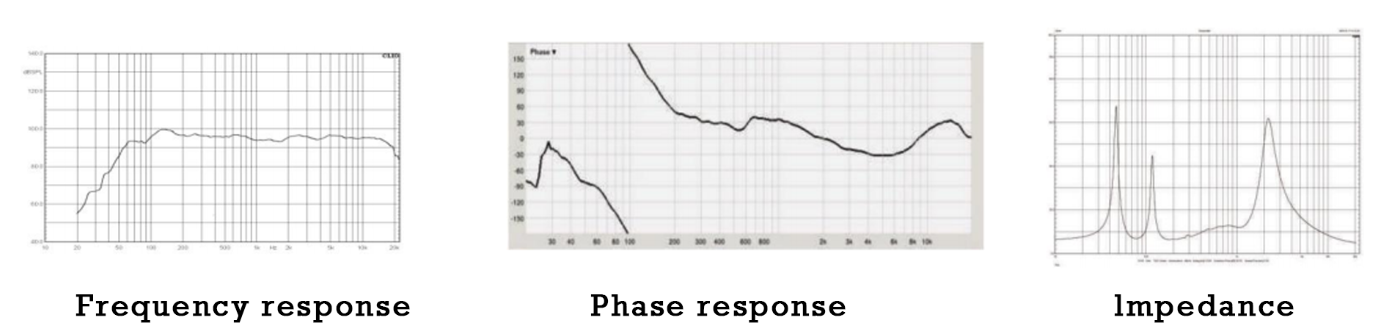

Frequency response	70 Hz ~ 18 kHz (±3 dB )：55 Hz ~ 20 kHz (-10 dB )
Nominal Coverage(-6dB)	100°（H） 55°(V) Constant directivity
Sensitivity (@1w/1m)	95 dB SPL
Power Rating （AES）	300W
Nominal Impedance	8ohm
Max SPL	120dB/126dB SPL peak
Drivers	LF 1 x 10"（75mm voice coil）woofer HF 1 x 44mm voice coil compression driver

Physical data

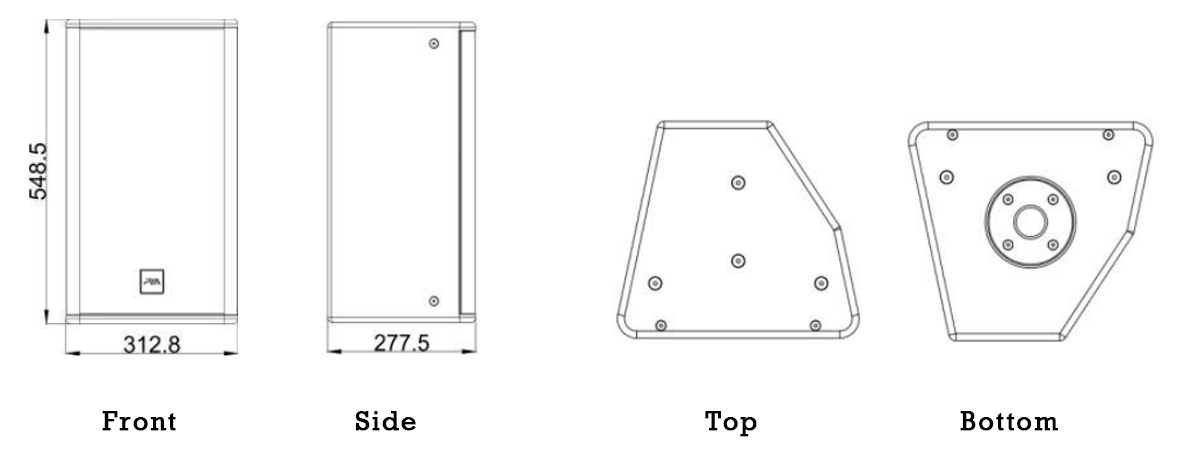

Dimensions	548.5 x 312.8 x 277.5 mm
Weight	19Kg
Connectors	2 x NL 4MP Neutrik Speakon connectors
Speaker Cables	1+1-
Materials	18mm, 24mm birch plywood
Finsh	Black polyurea paintings
Grille	Black epoxy mesh grille with acoustically reticulated foam
