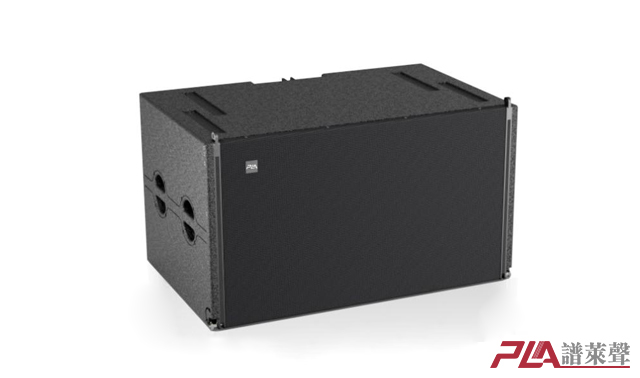

LA21

Applications	Feature
Middle and large touring performance	Neodymium high-sensitivity driver, maximum headroom
Stadium	High-power output cabinet
	Ultra-low frequency limiting
	Multiple ergonomic handles on each side

Technical parameters

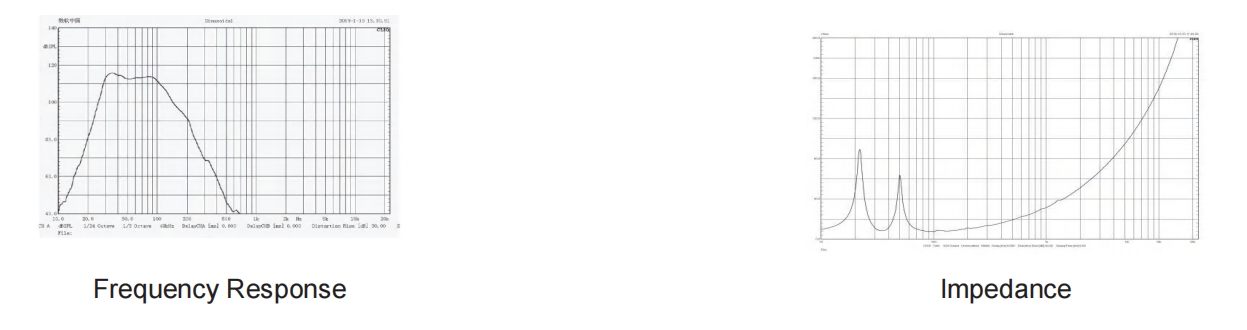

Frequency response	25 Hz ～250 kHz (±3 dB )
Nominal Coverage(-6dB)	Omnidirectional
Sensitivity (@1w/1m)	98 dB SPL
Power Rating （AES）	1200W（AES）
Nominal Impedance	8 ohm
Max SPL	140 dB SPL peak
Drivers	1x21" neodymium woofer( 135mm voice coil)

Physical data

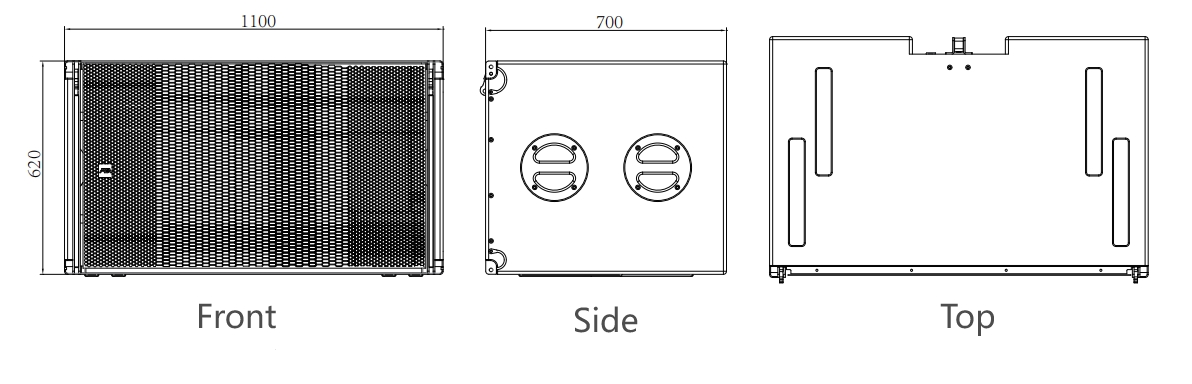

Dimensions	648×1100×700 mm
Weight	100.6 kg
Connectors	2 x NL4 connectors
Speaker Cables	1+1-... ，2+2-...N/C
Materials	15mm 18mm 24mm Baltic birch plywood
Finsh	Black Polyurea paintings
Grille	Black epoxy mesh grille with acoustically reticulated cloth
