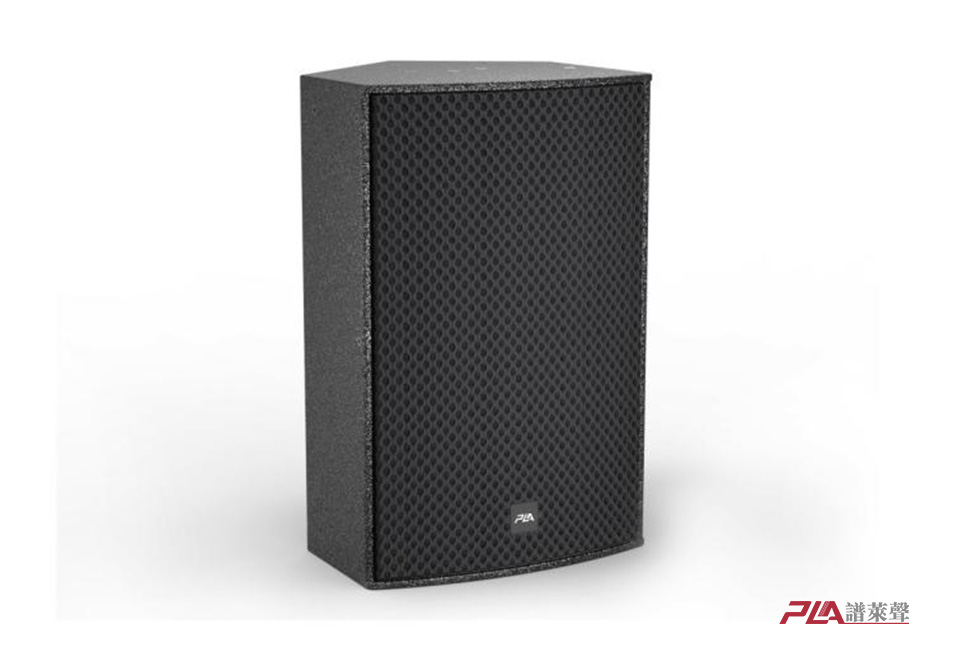

PS12P

Applications	Feature
Small FOH	Rotatable 50 x 80°directivity horn Preamplifier circuit technology Phase Coherent Technology MLC(Microphone&Line Combined Input) D-AMP (Class D Amp lifier) Digital Amplifier Circuit Technology Elastic bass FCT(Full frequency Coherent Technology) Selfpowered full range speaker Long throw rubber edge LF driver
Stage Monitor
Near-Field Sound

Technical Parameter：

1. Active coaxial stage lip and monitoring speaker

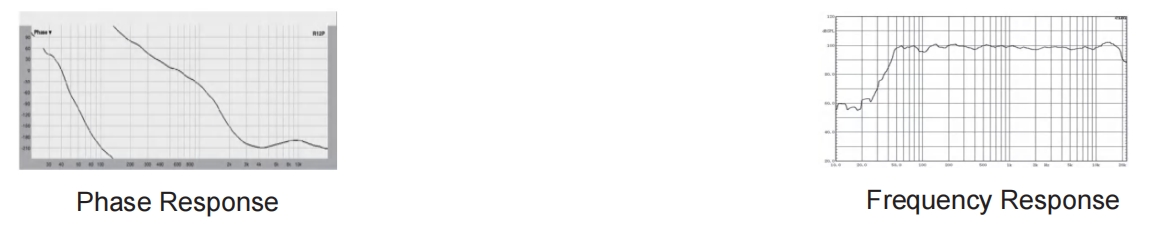

2. Frequency response: 55Hz-20 kHz (± 3dB)

3. Speaker unit: LF: 1x12 "all-weather bass unit

HF: 1x1.75 "phase corrected compressed tweeter unit

4. Nominal coverage angle: 50 ° (horizontal) x 80 ° (vertical)

5. Maximum sound pressure level: 126dB SPL@1m

6. Output power: dual channel low-frequency 1000W+high-frequency 1000W

7. Total harmonic distortion (1 kHz, full power 4Q): ≤ 0.8%

8. Signal to noise ratio: ≥ 95 dB

9. Active gain: 32 dB

10. Processor requirements: Equipped with DSP processor, able to remotely set speaker parameters, call data, and monitor status through software

MaterialFinishGrilleGrille

Physical data

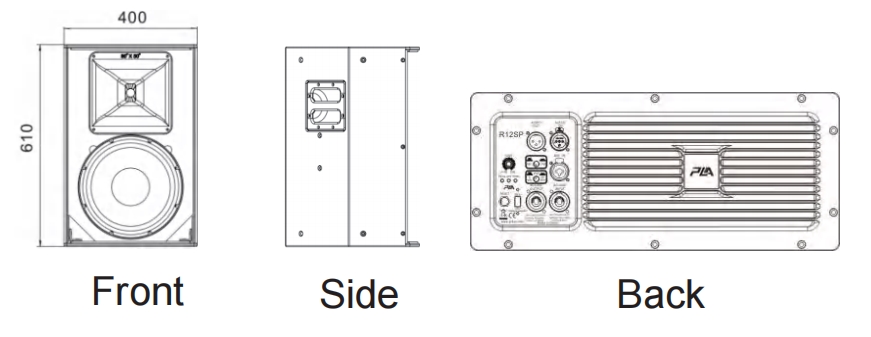

Dimensions	400x410x610mm
Weight	27Kg
Imported multi-plywood Environmental waterproof and anti corrosion coatings
Black Polyurea paintings
Black epoxy mesh grille with acoustically reticulated cloth
DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
