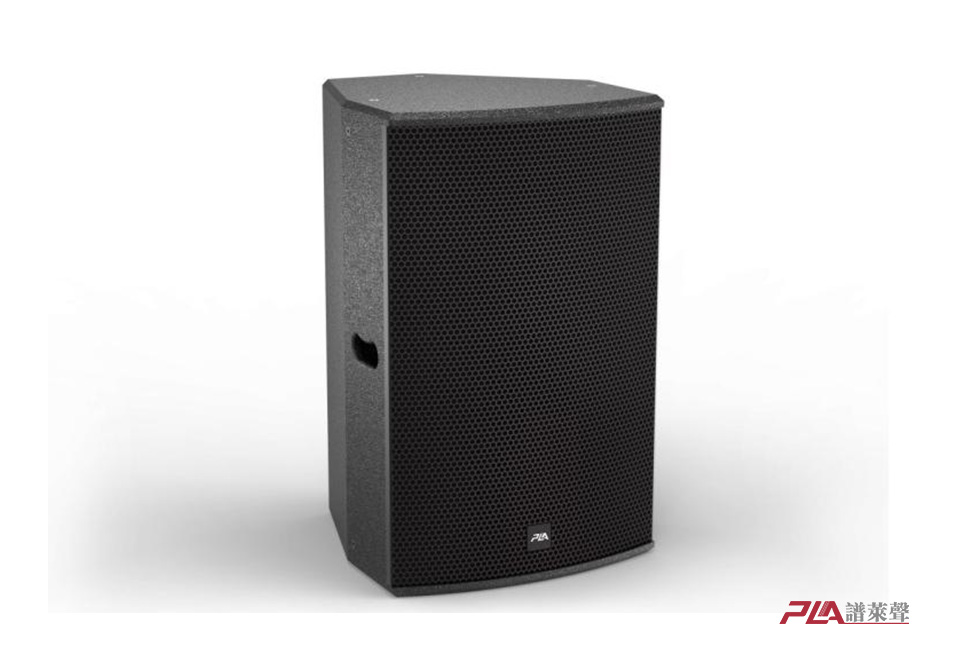

PS15P

Applications	Feature
Small FOH	Selfpowered full range speaker
Stage Monitor	Elastic bass
Near-Field Sound	Long throw rubber edge LF driver
	Rotatable 80X50°directivity horn
	Buit-in amplifier and DSP

Technical parameters

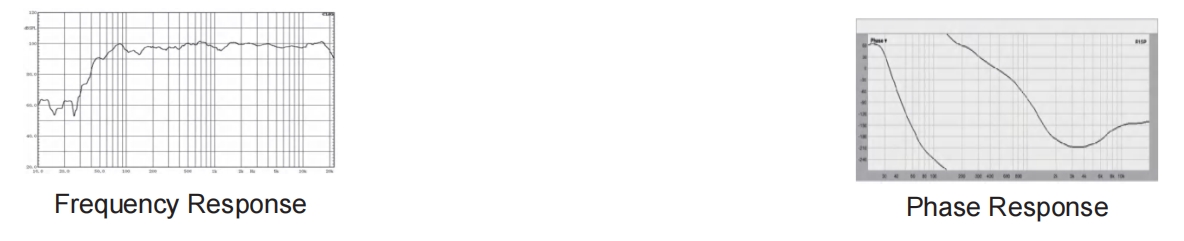

Frequency response	50Hz~ 18 kHz (±3dB ) ；30Hz ~ 20 kHz(-10dB )
Drivers	LF 1x15"woofer ( 75mm Voice coil ) HF1x3"( 1 "throat） exit compression drive( 75mm Voice coil )
Nominal Impedance	80°x50°
Power Rating （AES）	500W
Max SPL	123dB SPL， 129dB SPL peak
Power requirement	100V- 120V~/200-240V~ 50-60Hz
Amplifier module	2000W
THD+ N(Rated power,4 Ohm/Khz) %	≤1%
Snr	≥95dB
Gain	32dB
Input connectors (per.ch)	XLR+POWERCON
Input impedance	20 kQ balanced/10 kQ unba lanced
Output electric circuit	Class D circult
Cooling system	Airflow from back to front, Forced cooling
DSP	Built-in DSP module with screen display

Physical data

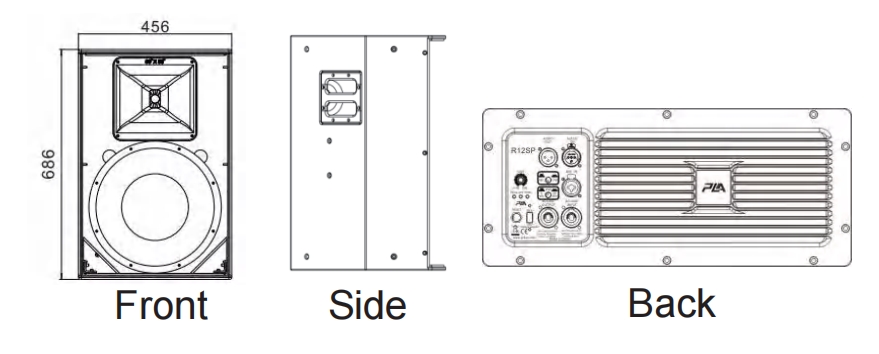

Dimensions	686x456x445mm
Weight	31Kg
Rigging	M8 top +35mm bottom
Materials	15mm，18mm Baltic brich plywood
Finsh	Black Polyurea paintings
Grille	Black epoxy mesh grille with acoustically
