Applications | Feature | |
Touring performance | Built-in amplifier and DSP, self-powered 18inch subwoofer | |
multi-function hall | Working with LS10, Surface design has the space for taking in 2pcs LS10 | |
Club | Bottom with wheels and bumper, convenient for transportation and construction of multi-mode |
Technical parameters | ||

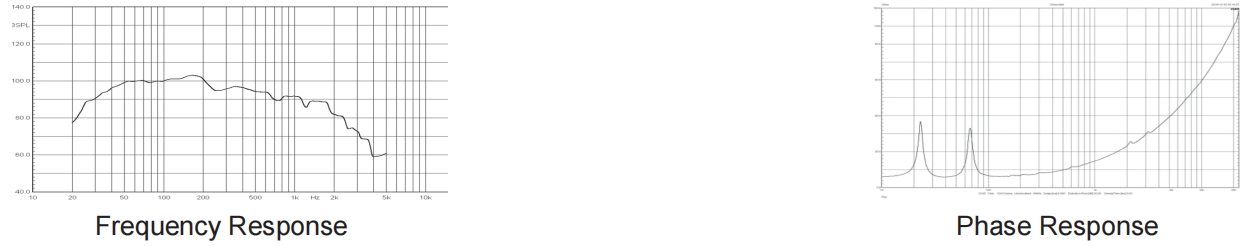

Frequency response | 40Hz~ 200Hz(+ 3 dB ) ;28Hz-250Hz(-10dB) | |
Nominal Coverage(-6dB) | Omnidirectional | |
Max SPL | 136 dB SPL peak | |
Drivers | 1 X 18"woofer (100mm voice coil) | |
Power Rating (AES) | 1200W | |
Power requirement | 200- 240V ~ 50-60Hz | |
Amplifier module | Dual channel 2000W | |
Power requirement | 0.82% | |
Snr | 104dB | |
Output electric circuit | Class D circult | |
Cooling system | Airflow from back to front, F orced cooling |
Physical data | ||

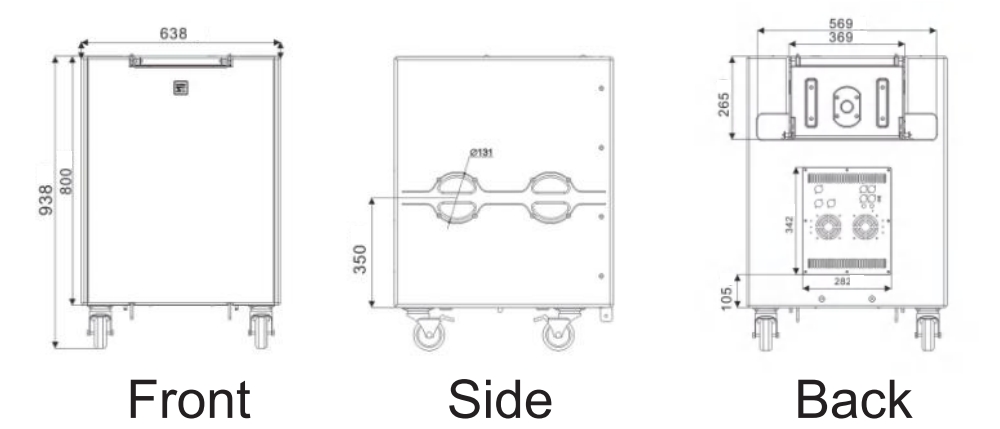

Dimensions | 938 X 638 X 700mm | |
Weight | 70Kg | |
Connectors | NEUTRIKNL4; USB | |
Speaker Cables | 1+1- ( NEUTRIKNL4 1 ) ;1+1- ( NEUTRIKNL4 2 ) | |
Materials | 15mm 18mm Baltic birch plywood | |
Finsh | Black Polyurea paintings | |
Grille | Black epoxy mesh grille with acoustically reticulated cloth | |
Rigging | 0、- -5° degree adjustable |
