Applications | Feature | |
Touring performance | High power and high sensitivity neodymium magnetic unit | |
Stadium | High output box construction | |
Theatre | Ultra-low frequency limit | |
Double fixed connection point | ||
Built-in power amplifier module (maximum 8500W) | ||
One L21P active ultra low can drive one S21 passive ultra low |
Technical parameters | ||

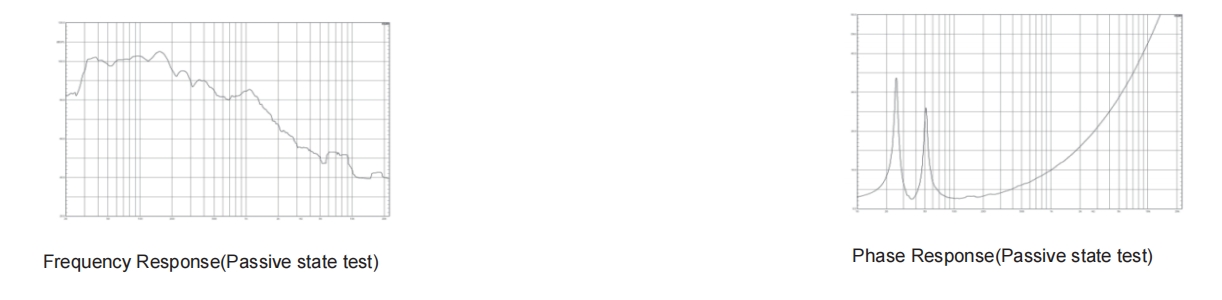

Frequency response | 32 Hz ~ 150 Hz (±3 dB ) ;28 Hz ~ 200 Hz (-10 dB ) | |
Nominal Coverage(-6dB) | Omnidirectional | |
Max SPL | 134 dB /140 dB SPL peak | |
Drivers | 1×21" (135mm voice coil ) | |
Power Rating (AES) | AC 100V~240V,50/60Hz | |
Maximum output power of the active module | 8500W | |
Dynamic range (A weighted @ 8 ohm) | 65 dB | |
Output noise (A weighted @ 8 ohm) | -44 dB | |
AUDIO IN gain (1 kHz 8 ohm) | 32 dB | |
Power requirement | <0.6% | |
Output electric circuit | Class D circult ,Built-in DSP module | |
Output connection | WP4:1-2+,NL4:1+1- | |
Control connection port | RS-485 | |
Cooling system | Airflow from back to front, Forced cooling |
Physical data | ||

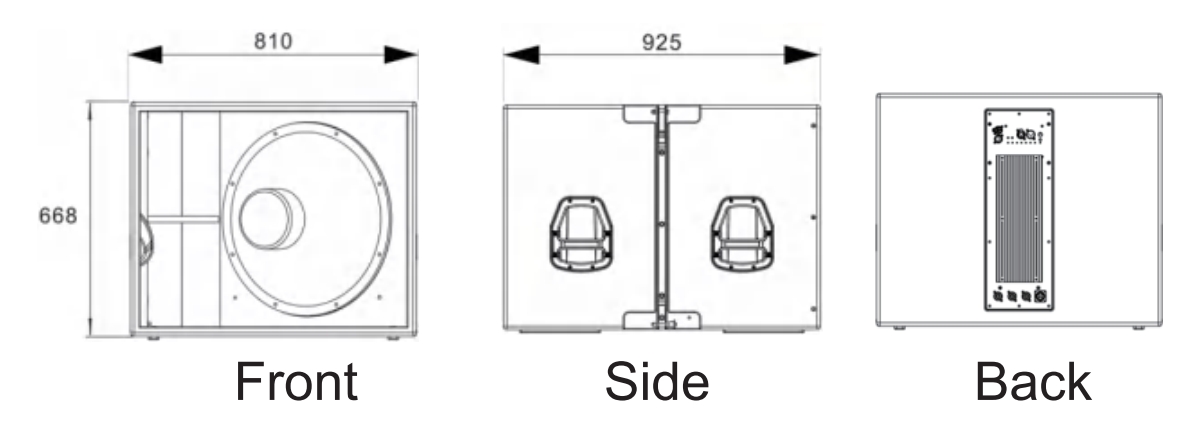

Dimensions | 668 x 810 x 925 mm | |
Weight | 89 kg | |
Connectors | Two point hanging (side) | |
Speaker Cables | XLR+powerCON+speakON | |
Materials | 24 mm Baltic birch plywood | |
Finsh | Black polyurea paintings . | |
Grille | Black epoxy mesh grille with acoustically reticulated foam |
