PRODUCTS

D2000

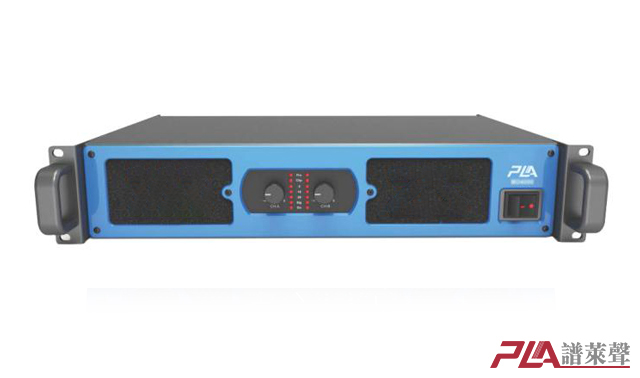

2ch Professional Amplifier	D2000
Output power 8Ω Stereo power 4Ω Stereo powe	2×1200W 2×2000W

Technical Specification
Frequency response	20Hz 20kHz±1dB
THD+N (Rated power,4Ω /KHz)%	0.82%
Signal noise ratio(dB)	104dB
Amplifier gain (1KHz 8Ω)	32dB

Connection
Input connectors (per.ch)	Neutrik & Male XLR & Female XLR
Input impedance	20KΩ Balance /10KΩ Unbalance
Output connectors	Neutrik NL4MP
Output electric circuit type	D type circuit
Coolant system	Fans from front to back, Forced cooling

Power
Power requirement	200-240V~ 50-60Hz
Minimun voltage	190-260V~ 47-63Hz

Dimension and Weight
Dimension	483×294×88mm
Weight	9Kg
