★ Feature

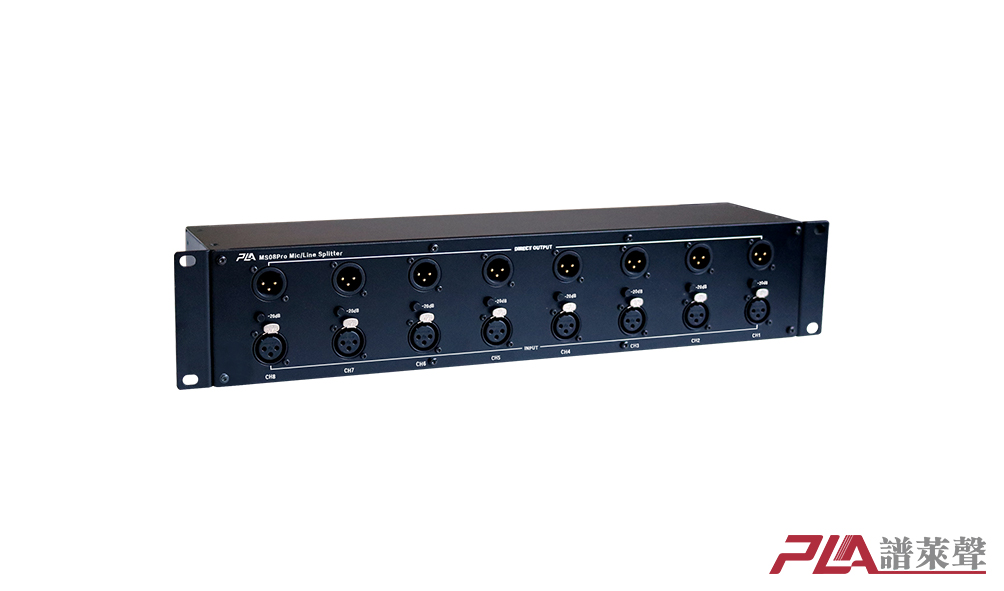

The Microphone Splitter System is designed   for flexible audio system installation applications such as radio /   television studios and stage monitoring. The use of NEUTRIK XLRs connector   for easy change the input / output channel location.

The professional quality Micophone Splitter   Systems are designed for use in applications where exceptional audio   performance, with first level audio transformers ,offer up to +26dBu’s audio   level signal processing.

The microphone distributor is composed of a   set of balanced original imported Swiss NEUTRIK 3 core Carnon motherblock   independent input channel, and equipped with -20dB attenuation switch; Each   Microphone Splitter has three outputs- one is direct and two are transformer   coupled. There are two switches for A and B outputs.  The 2 sets of isolation transformers,   outputs (A and B) are also equipped with ground separation selector switches   to help solve the noise caused by the ground circuit. When the switch is   pushed to the left, the ground wire will be set apart; When the switch is   pushed to the right, the ground wire will be set to connect.

★Specifications

※8-channel Microphone input, three sets of   8-channel microphone (24-channel) output

※Broadcast-level audio quality

※   Working level up to +26DBU

※PPD Phantom Power through technology: each set   of outputs can simultaneously provide phantom power for capacitive microphone   work

※Specially designed for mobile performance

※Broadcast grade audio isolating transformer output

※ One-Channel direct output, two-Channel  ground   output can be independently disconnected set selection

※Standard 2u-19 inch Rack airframe

※Front and rear panels can also be installed on the rack

※Highly integrated, rugged all-metal organism

※Military Indicators Accessories Manufacturing

※Each channel of the Distributor is provided   with three sets of outputs: 1 sets of direct output and 2 sets of isolated   transformer outputs

※Independent Ground separation Setting selection
