★ Feature

The professional quality Micophone Splitter   Systems are designed for use in applications where exceptional audio   performance, with first level audio transformers ,offer up to +26dBu’s audio   level signal processing.

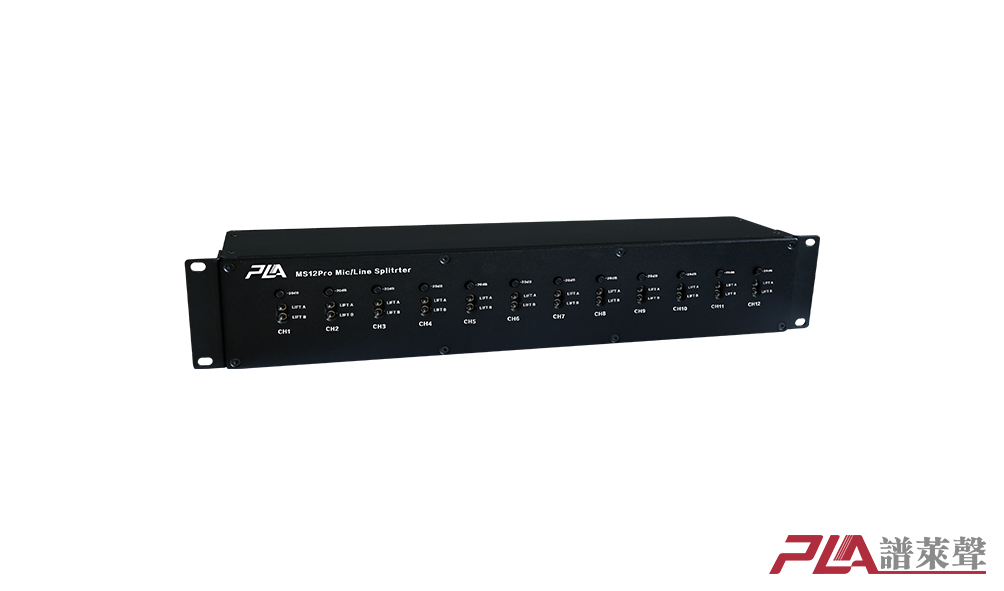

MS12Pro signal splitter is equipped with a   total of 12 input 36 output. One input is equipped with -20dB switch; Each   channel is equipped with three groups of output: one group of direct output,   two groups of isolation transformer output. The 2 sets of isolation   transformers, outputs (A and B) are also equipped with ground separation   selector switches to help solve the noise caused by the ground circuit. When   the switch is pushed to the left, the ground wire will be set apart; When the   switch is pushed to the right, the ground wire will be set to connect; In   addition, the phantom power through circuit (PPD phantom power through patent   technology) provides the phantom power for the input microphone.

★Specifications

※12-channel microphone input, three sets   of 12-channel microphone (36-channel) output

※Broadcast-level audio quality

※   Working level up to +26DBU

※   Specifically designed for touring

※Broadcast grade audio isolating transformer output

※One-Channel   direct output, two-Channel  ground output can   be independently disconnected set selection

※Standard 2u-19 inch Rack airframe

※Front and rear panels can also be installed on the rack

※   High integration, rugged all-metal body

※   Military index parts manufacturing

※Each channel of the Distributor is   provided with three sets of outputs: 1 sets of direct output and 2 sets of   isolated transformer outputs
