F13000

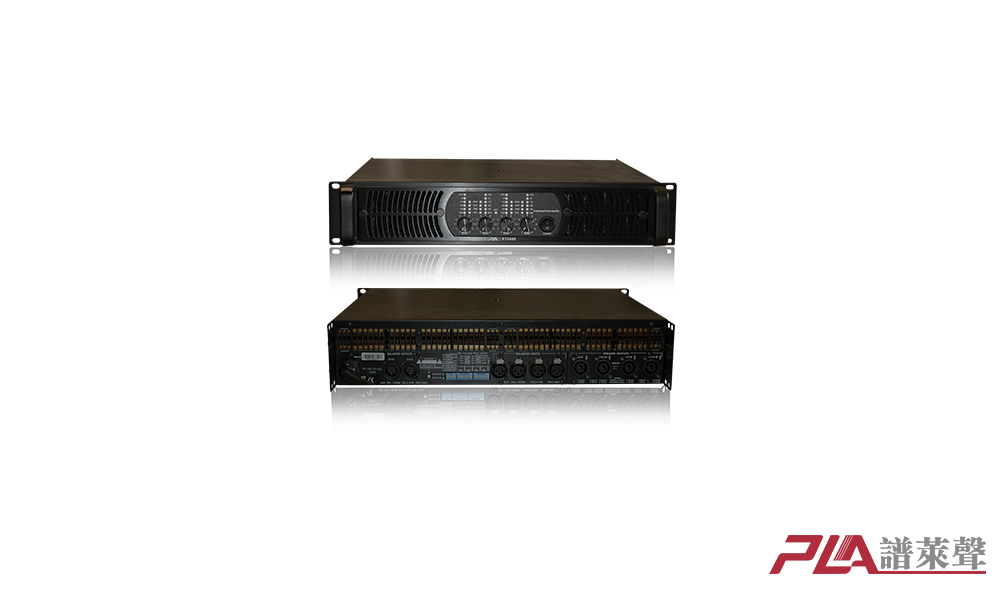

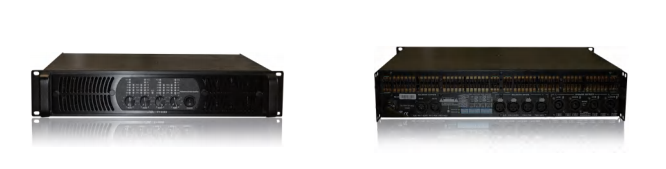

Four channel professional amplifier: F13000

Features:

1. FINEAMP Sound Quality Assurance

2. Standardized switching power supply

3. Efficient heat dissipation system

4. Comprehensive protection and early warning system

four × 1300W/8 Ω stereo

four × 2200W/4 Ω stereo

two × 4400W/2 Ω stereo

two × 4400W/8 Ω bridging

two × 48000W/4 Ω bridging

Technical parameters:

Frequency response: 20 Hz~25 kHz ± 0.5 dB

Total harmonic distortion (1kHz, full power 4 Ω): 0.1%

Signal to noise ratio: 98 dB

Optional Power gain (1kHz, 8 Ω): 23.26.29.32.35.38.41.44dB

Connection method:

Input method: 3-pinXLR, balanced

Input impedance: 20 k Ω balanced/10 k Ω unbalanced

Output Connections: Spoken Connectors (Neutrik)

Current requirement: 200-240V~50-60 Hz

Minimum voltage requirement: 180-260V~50-60 Hz

Size: 483x377x88mm

Weight: 13kg
