PRODUCTS

S12P

Features:

Using 1 high-efficiency 12 inch ferrite bass unit

Three channels 500W@4 Euro+DSP active module

The overall appearance is small and exquisite, suitable for use with small engineering speakers

Technical parameters:

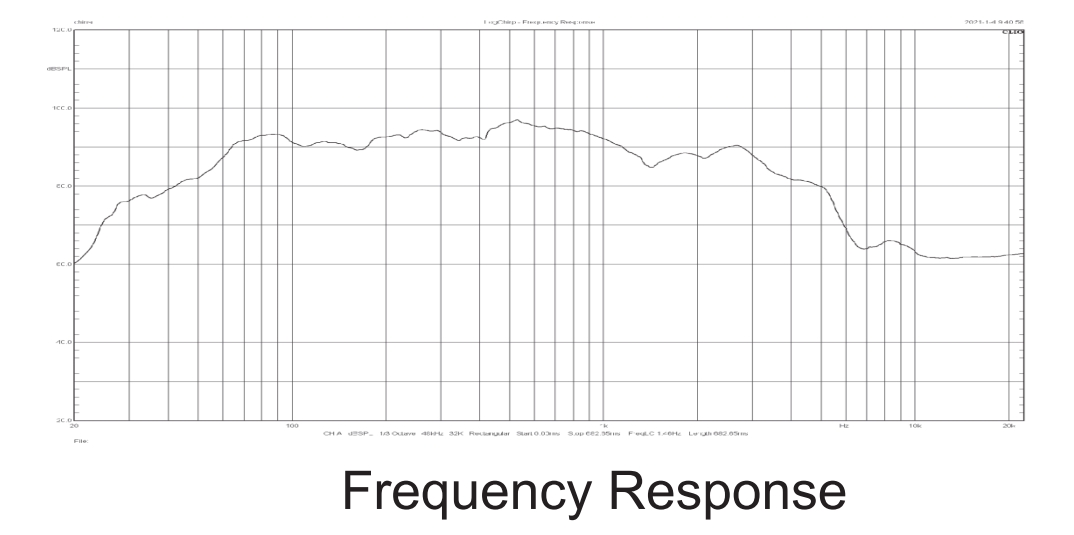

Frequency response: 55Hz-150Hz (3dB), 45Hz-120Hz (-10 dB)

Standard directionality (-6dB): No directionality

Active module: three channels 500W@4 Europe+DSP [supports 21 modes]

Overall gain: 32dB

Crosstalk (1KHz):<-70dB

Input impedance: 20K Ω balanced/10K Ω unbalanced

THD+N (0.1w to 1/2 power):<0.05%

Signal to noise ratio:>95dB

Common-mode rejection ratio:>50dB

Maximum sound pressure level: 120 dB (continuous), 126 dB [peak]

Working voltage: 200-240VAC 50Hz

Dimensions (length x width x height): 365 x 400 x 400mm

Weight: 27 kg

Material: Surface sprayed with black polyimide or white water-based paint

Surface treatment: black polyurea paint

Mesh cover: The surface mesh is covered with sound-absorbing mesh fabric

Suspension/support: top support seat

Application:

Meeting room, background music
