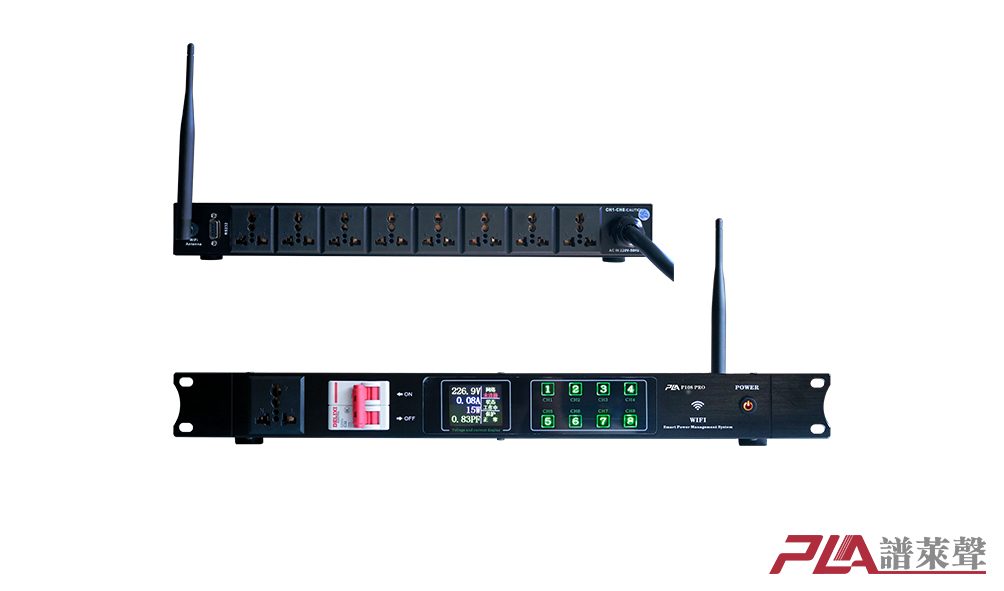

P108 Pro

WiFi power sequencer

WiFi intelligent sequencer with color screen display, remote control through mobile app, 8-channel controllable output, one phone can manage multiple devices. Built in power meter, real-time display of voltage, current, power and power factor and real-time upload to mobile phone for remote monitoring, with overvoltage protection and overcurrent protection, WIF1 transmission distance of 30m is unobstructed (24GWIFI network), and can cycle Time switch (server control).

Technical features:

When the voltage exceeds 260V, it will not start. When the voltage exceeds 260V during use, it will automatically trip and disconnect, and can be manually opened with the APP

When the current exceeds 35A, it will automatically trip (after disconnection, it can be manually opened with the APP)

Under the same WiFi local area network, the network can be automatically connected after matching the distribution network through the APP

Support RS232DR9 interface, Baud can be set (4800-128000, default 9600)

When the device suddenly loses power, data is automatically stored.

Technical parameters:

Power input conditions (single-phase 3-wire): AC90-265V50-60HZ two-phase (3-wire: zero, fire, ground)

Number of channels: 8-way relay controlled, 1-way universal socket directly connected, single channel rated output maximum current application: 16A

The controlled output of the relay can withstand maximum single channel power/total power: 3500W/7700W (the total power will be displayed on the display screen, please observe carefully)

Output power socket specification: flame-retardant ABS material, can withstand a maximum current of 16A, made of sulfonic copper material, standard universal socket

Interval time/timing time of each switch: 12 seconds Output relay contact current: 40A240VAC

Appearance specifications:

Weight: 3.25 kilograms (KG)

Size: 48x19x5 (cm)
