MS01PRO Passive Microphone Distributor

1 passive microphone distributor

Product advantages:

1. 1 channel microphone input, three sets of 1 channel microphones (3 channels) output

2. All input channels have a -20dB gain switching switch, compatible with microphone and line level signals, and can operate up to+26dBu

3. Possessing PPD (Phantom Power Direct) Phantom Power Direct patented technology, each output can simultaneously provide phantom power for active circuits such as condenser microphones, and the grounding wire remains independent

4. Each channel of the distributor is equipped with three sets of outputs: 1 set of direct outputs and 2 sets of isolated transformer outputs

5. Broadcast level audio transformer isolation output

6. One direct output, two output ground wires can be independently disconnected for setting selection

7. Independent ground wire separation setting selection

Product Description:

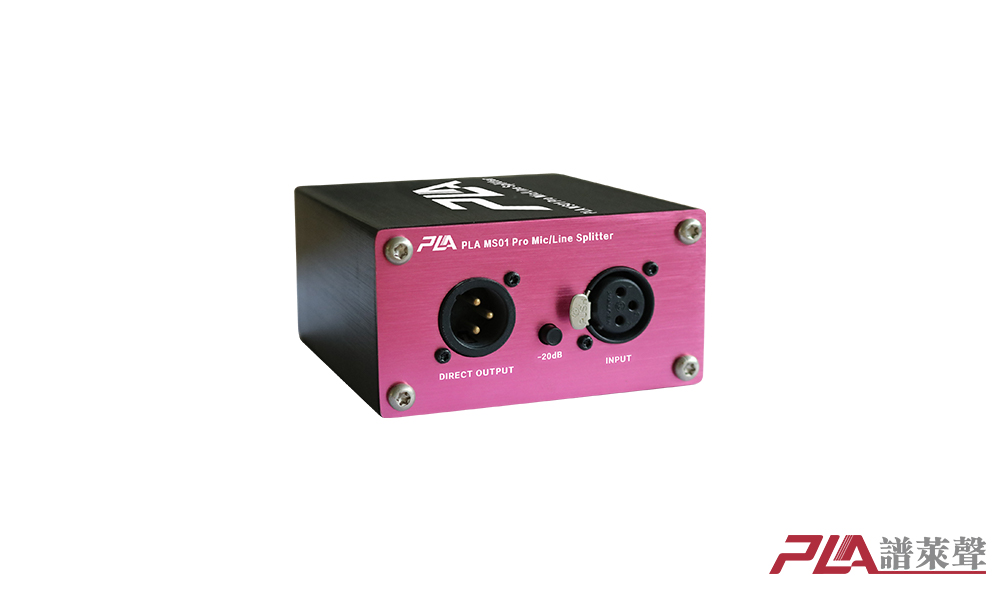

Input panel

1. XLRM-3 direct output

2. XLRF-3 microphone input

3. -20dB gain switching switch

Output panel

1. XLRM Isolation Transformer Canon Output B

2. Line output B - ground wire separation switch

3. Line output A - ground wire separation switch

4. XLRM-3 isolation transformer Canon output A

Product parameters:

Frequency response -0.2dB, 20Hz~20kHz, 0dB

Maximum input level+26dBu at 50Hz

Total harmonic distortion 0.005% (0dBu 1kHz)

Loss attenuation -0.3dB for 600 Ω load (in most high impedance input devices, it can be considered as no attenuation loss)

Output short-circuit loss -1.4dB

Set the grounding selection for the XLR male output A and output B of the isolation transformer; Isolation transformer output B and direct output microphone phantom power selection

Size 100mm (length) × 98mm (width) 52mm (height)

Weight 500g
