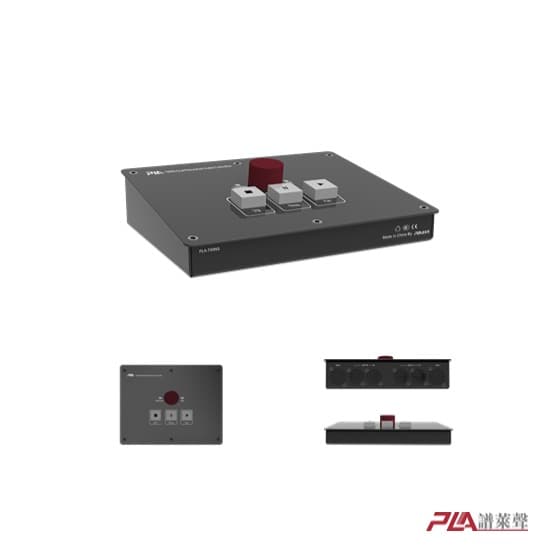

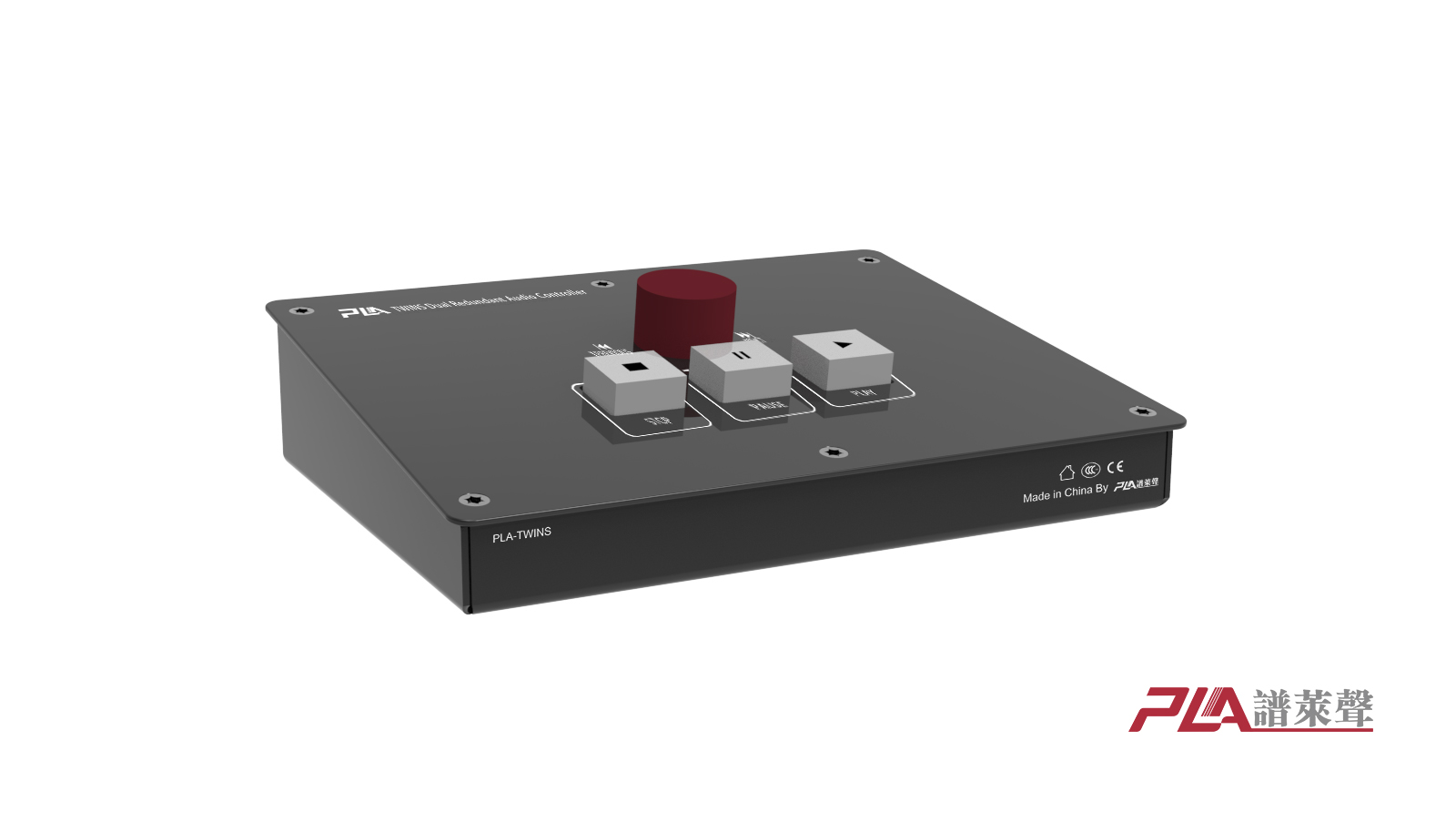

TWINS Dual Redundant Audio Controller

The TWINS Dual Backup Audio Announcer is designed for secure audio systems with the flexibility

 to hot back up and control the playback of audio input signals. It adopts customized two independent

Tpye-C connectors and full standard XLR XLR gold-plated sockets to ensure solid connection and stable

data transmission. Equipped with two completely independent sets of the latest professional DAC chips,

support common lossless audio output PCM encoded 32Bit/384KHz and DSD encoded audio, which can

truly restore lossless sound quality. With hard-core decoding capability, it can decode DSD format and

present rich details. Optimized circuit design and shielding technology to reduce the bottom noise, to ensure

pure sound. Supports connecting two computers at the same time, synchronized playback of the main and

backup audio sources. In the performance of synchronized playback of two sets of audio when used, can be

two computers connected to TWINS to do a master and a backup at the same time playback, which is the most

secure way to play the show, even if one of the playback computer malfunction will not cause the music to stop

the performance of the accident, to ensure that the performance of the normal performance, the use of convenient

and no driver, where support for the MIDI protocol of the control software canbe used.

Technical characteristics：

●Adopt 2 groups of DUAC (Digital USBS Audio Conversion Technology)

professional audio digital conversion technology chip; support ordinary

lossless audio output PCM encoding 32Bit/384KHz, and also support DSD

encoding audio, decoder 64/128 (DOP) real restore lossless sound quality.

● Two sets of stereo independent output to realize the hot backup of the

playback audio source.

●Support Qlab, Qcart, Hirrender p1, SSP and other players.

●Exclusive Qpaly synchronized operation buttons; including knob

left/right/press, play/pause/stop.

●Support customization at any time, modify the operation buttons and

usage habits as needed.

●Compatible with Windows, ios, Android and Hongmeng operating systems,

plug and play driver.

●Provide shortcut key/MIDI dual-mode control mode (e.g. Qlab can be

controlled by shortcut key, and midi control mode can also be set);

●Highly integrated, rugged all-metal body

Specifications：

●Sample Rate ：32KHz~384KHz

●DSD Lossless Decoding ：Dop64,Dop128

●Output ：2Vrms@600ohm

●Total Harmonic Distortion (THD) ：-105dB

●Frequency Response ：20~40000Hz(-0.18dBA)

●Signal-to-Noise Ratio ：+119dB

●Dynamic Range ：118dB

●Output Voltage ：2Vrms Max

●Crosstalk ：-126dB @32ohm

●Standby Power Consumption ：≤0.08W

●Output Impedance ：16~600Ω

●DAC Sample Rate ：32bit/384KHz

●DSD ：2.8MHz for DSD64 over PCM(DOP)

              5.6Mhz for DSD128 over PCM(DOP)

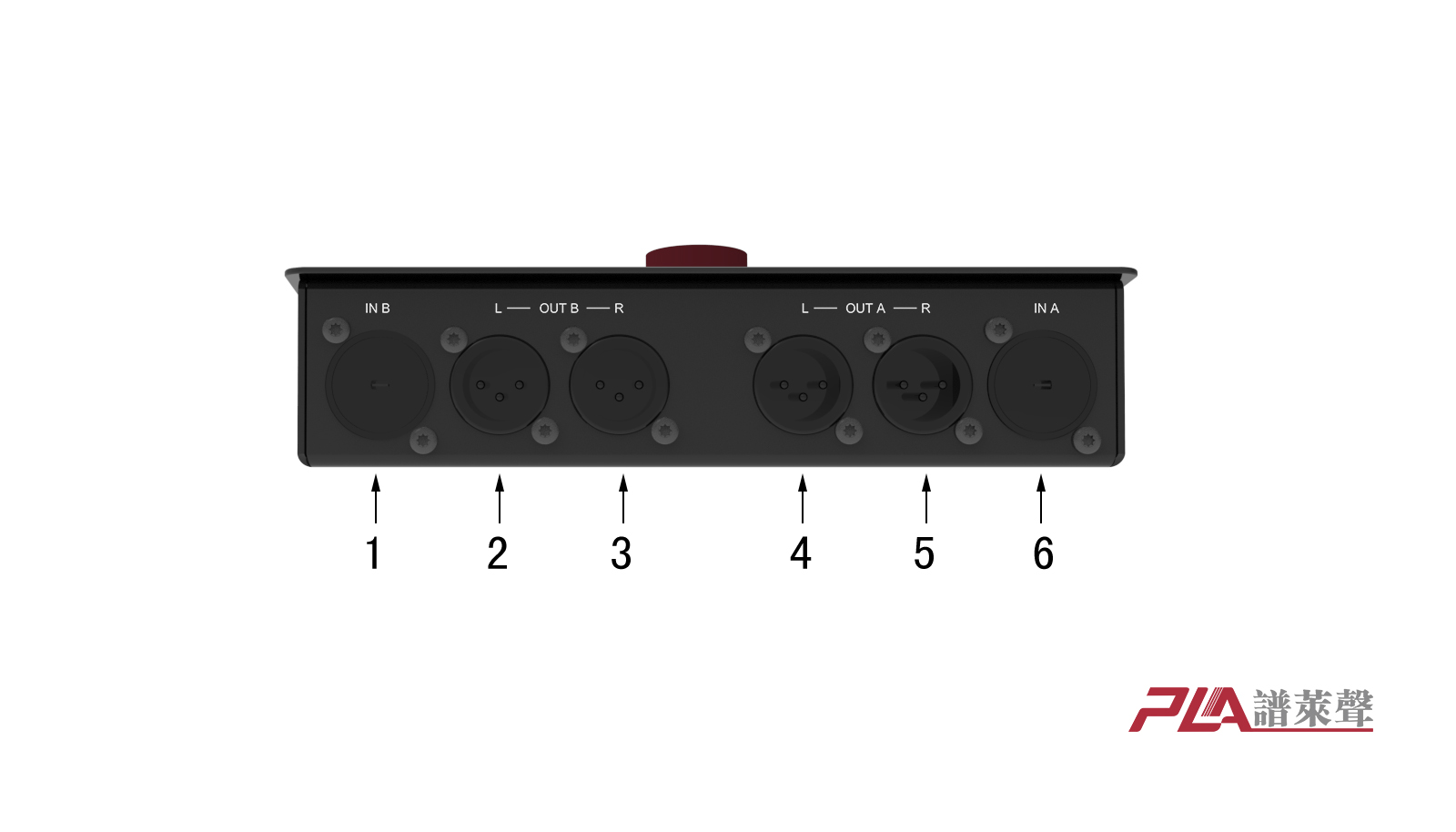

●Input ：Type-C ×2

●OUTPUT ：Neutrik XLR socket outputs × 4

●Operation buttons ：Knob left/right/push, play/pause/stop
