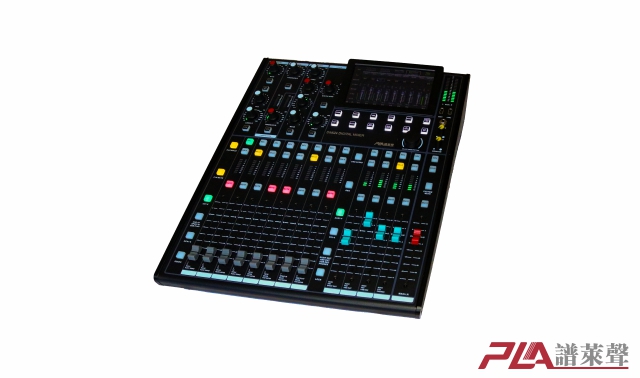

Digital mixing console

The DiMi24 digital mixing console effectively integrates digital mixing systems with innovative design and powerful DSP functions, adopting a new concept of integrating modern digital and traditional operation,bringing users a very professional and functional experience. The simple operation interface, very ergonomic and live audio operation concept, and professional mixing effects, can be able to play on a professional performance with excellent ability, but also fully meet the inexperiencedindividual users to provide powerful effects.

The digital mixing console has a strong processing power and advanced features, for the convenience and speed brought about by the design of the software operation process, you can quickly tune the mixing interface. Providestable and reliable performance, convenient and fast operating experience, so that all people can enjoy the convenience and powerful features of the digital mixing console, support for Windows,Linux, Mac, Android, ios and other operating systems full-featured controlsoftware.

Technical Specifications:

● Total Harmonic Distortion + Noise: <0.003% @ 4dBu A+weighted

● Frequency Response: 20Hz ~ 20kHz, +0.1dB ~ -0.3dB

● Sampling Rate: 48kHz

● Quantisation depth: 24-bit

● Noise floor: -92 dBu, A-weighted

● Maximum input level: +23 dBu, balanced

● Maximum output level: +23 dBu, balanced

● Phantom power: 48V

● Analogue-to-digital dynamic range: 113dB

● Input-to-output dynamic range: 110dB

● Input impedance (balanced): 2.4kΩ

● Output impedance (balanced): 100Ω

● Channel isolation: 70dB @1kHz

● Common-mode rejection ratio: -60dB Type

Technical characteristics

1. 10-inch resistive touchscreen with 1280x800 resolution

2. 17 x 100mm motorised faders controlling 1 LR master fader and 16 channel faders

3. Seamless switching between Chinese and English interfaces without restarting

4. Built-in USB recording and playback functionality

5. Supports lossless audio formats: APE, FLAC, MP3, WAV

6. USB player recognises Chinese song titles

7. Built-in 16-channel independent feedback suppressors

8. Features 8 DCA groups

9. Full-function iPad touchscreen control with real-time data synchronisation

10. Supports simultaneous control from 8 terminals

11. Built-in dual effects processors

12. Analogue inputs: 24 channels (MIC/Line)

13. Each input channel features 4-band parametric EQ, noise gate, feedback suppressor, high/low pass filters, compression, and phase inversion

14. Each output channel features 8-band parametric EQ, high/low pass filters, compression, phase inversion, and 1.8-second delay

15. Output channels: Main (L/R) + 10BUS + REC (L/R) + Headphone (L/R) x2 + MONITOR (L/R)

16. 10BUS mixing bus selectable pre-fader or post-fader (PRE/POST)

17. Supports 100 scene presets, exportable/importable via USB storage for data backup

18. 100 PEQ mode memories

19. Built-in signal generator: sine wave, pink noise, white noise

20. Channel parameter copy function for rapid data replication between identical channels

21. Connectivity: Balanced XLR inputs/outputs

22. 8 fader groups, 4 mute groups, 8 user-definable buttons

23. Panel lock button (prevents accidental operation)

24. Customisable channel naming
